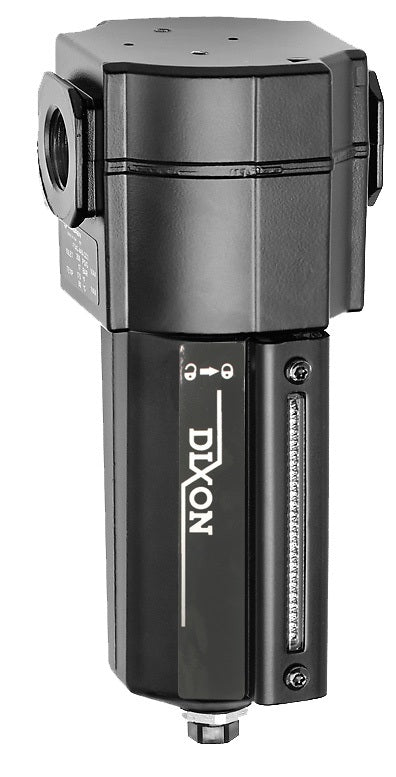

F73G-4M-MB by Dixon Valve | F73 Series 1 | Compact Airline Filter | 1/2" Port Size | 69 SCFM | Manual Drain | 4 oz. Metal Bowl & Sight Glass

Save $63.57

$158.93

$158.93 - $158.93

$158.93

$95.36

$95.36 - $95.36

$95.36

Dixon Valve
F73 Series 1 | Compact Airline Filter

For air service only.

Particle removal per ISO 8573-1, Class 5, and Class 3.

- 40 micron element
- 4 oz. reservoir

Quantity

Specifications for Variant SKU: F73G-4M-MB Dixon
Series:	F73 Series 1

Features:
Particle removal per ISO 8573-1, Class 5, and Class 3. 40 micron element. 4 oz. reservoir. Quick-release bayonet bowl. Prismatic lens liquid level indicator.
Specifications:
Inlet pressure: Transparent Bowl: Max Pressure: 150 PSIG (10 bar) Temperature Range: -30°F to 125°F (-34°C to 50°C) Metal Bowl: Max Pressure: 250 PSIG (17 bar) Temperature Range: -30°F to 150°F (-34°C to 66°C)
Dimensions:

Transparent Bowl		Metal Bowl and Sight Glass		Port Size	Flow (SCFM)
Automatic Drain Part Number	Manual Drain Part Number	Automatic Drain Part Number	Manual Drain Part Number	Port Size	Flow (SCFM)
F73G-2A	F73G-2M	F73G-2A-MB	F73G-2M-MB	1/4"	53 SCFM
F73G-3A	F73G-3M	F73G-3A-MB	F73G-3M-MB	3/8"	65 SCFM
F73G-4A	F73G-4M	F73G-4A-MB	F73G-4M-MB	1/2"	69 SCFM
