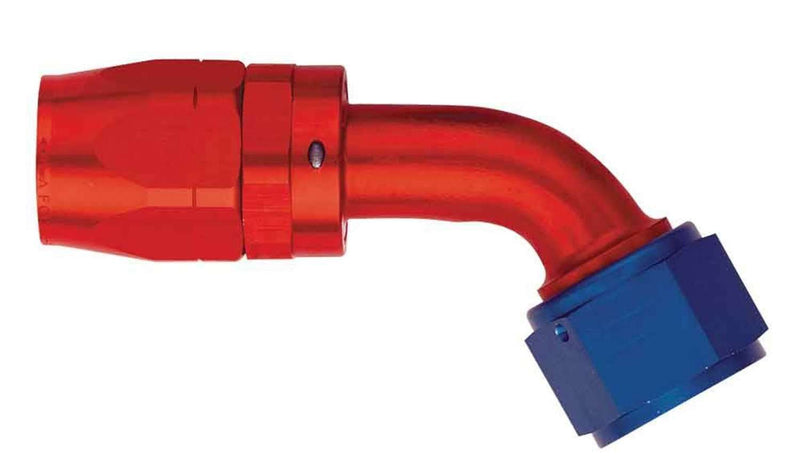

FBM1027 (FCM1027) Eaton Aeroquip® -20 Reusable S.A.E. 37° (JIC/AN) Non-Swivel 45° Elbow Fitting - Red/Blue Anodized Aluminum

FBM1027 (FCM1027) Eaton Aeroquip® -20 Reusable S.A.E. 37° (JIC/AN) Non-Swivel 45° Elbow Fitting - Red/Blue Anodized Aluminum

$107.50 - $107.50
$107.50
$112.17
$112.17 - $112.17
$112.17

Eaton Aeroquip® High Performance
45° Elbow S.A.E. 37° (JIC/AN) Non-Swivel Fitting for AQP® & StartLite® Racing Hose
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FBM1027 Eaton HP
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Reusable Hose End
Material(s): Anodized Aluminum
Reusable Aluminum Fittings Features:
  • One-piece design allows for improved flow, eliminates two potential leak points (brazed joints), and significantly improves appearance.
  • Designed to be re-used without damage to the fitting.
  • Easier to install than cutter style, more user friendly.
  • Nipple pilot prevents damage to the inner tube.
  • No seal is broken between nipple and tube when swiveled due to nipple design; ensuring integrity of the seal.
  • Compression style specially designed for performance applications.
Lightweight Crimp Aluminum Fittings Features:
  • Lightweight and easy to use design.
  • One-piece design allows for improved flow, eliminates two potential leak points (brazed joints), and significantly improves appearance.
  • Assembled with ProCrimp® crimp machines.
45° Elbow - S.A.E. 37° (JIC/AN)
Hose Size Reusable Black Anodized Aluminum Swivel S.A.E. 37° (JIC/AN) Part Number Reusable Red/Blue Anodized Aluminum Swivel S.A.E. 37° (JIC/AN) Part Number Reusable Red/Blue Anodized Aluminum Non-Swivel S.A.E. 37° (JIC/AN) Part Number Reusable** Steel Non-Swivel S.A.E. 37° (JIC/AN) Part Number Reusable Nickel-Plated Aluminum Swivel S.A.E. 37° (JIC/AN) Part Number Lightweight Crimp Swivel S.A.E. 37° (JIC/AN) Part Number Lightweight Crimp Non-Swivel S.A.E. 37° (JIC/AN) Part Number
-04 - - - FBM1021
(FCM1021)		 - - FBM4121
-06 FBM4422
(FCM4422)		 FBM4022
(FCM4022)		 FBM1022
(FCM1022)		 FBM1079
(FCM1079)		 FBE4022
(FCE4022)		 FBM4222 -
-08 FBM4423
(FCM4423)		 FBM4023
(FCM4023)		 FBM1023
(FCM1023)		 FBM1080
(FCM1080)		 - FBM4223 -
-10 FBM4424
(FCM4424)		 FBM4024
(FCM4024)		 FBM1024
(FCM1024)		 - - FBM4224 FBM4124
-12 FBM4425
(FCM4425)		 FBM4025
(FCM4025)		 FBM1025
(FCM1025)		 - - FBM4225 FBM4125
-16 FBM4426
(FCM4426)		 FBM4026
(FCM4026)		 FBM1026
(FCM1026)		 - - FBM4226 -
-20 - - FBM1027
(FCM1027)		 - - - FBM4127

**Aluminum socket

Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.

Compatible with:

AQP® Racing Hose
StartLite® Racing Hose
Danfoss High Performance

Danfoss High Performance

For more than 80 years, Aeroquip Performance Products has been the number one choice of racing enthusiasts around the world. We engineer and test each hose length and fitting to stringent factors of safety and our hoses and fittings are tested to work together as an assembly ensuring a proper fit. 100% of our hose is made in the USA and all of our fittings and adapters are distributed from our warehouse in Van Wert, OH.
