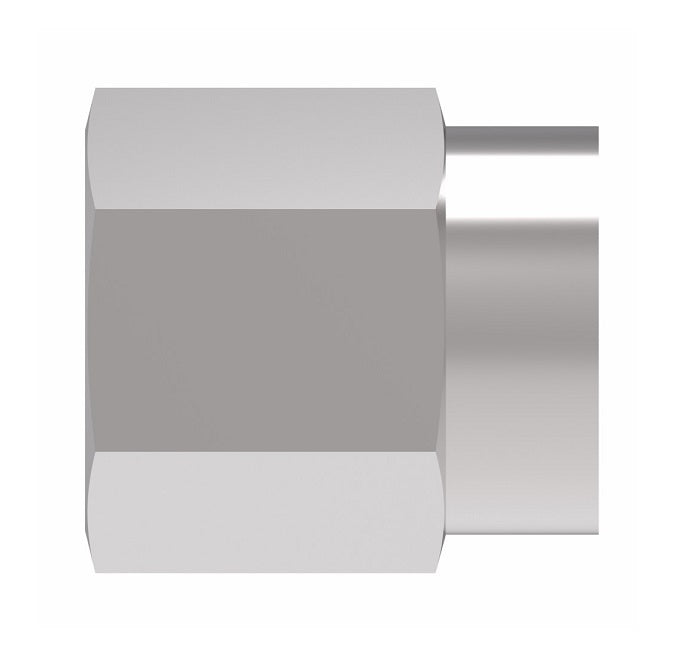

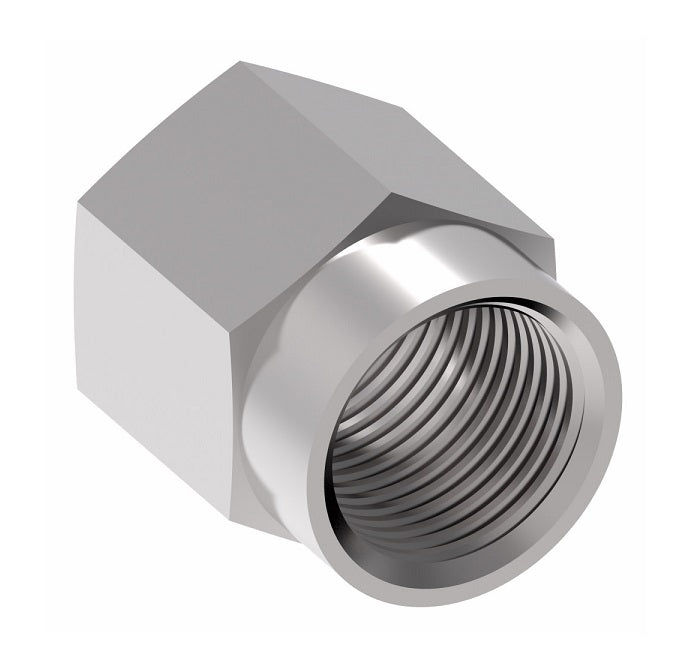

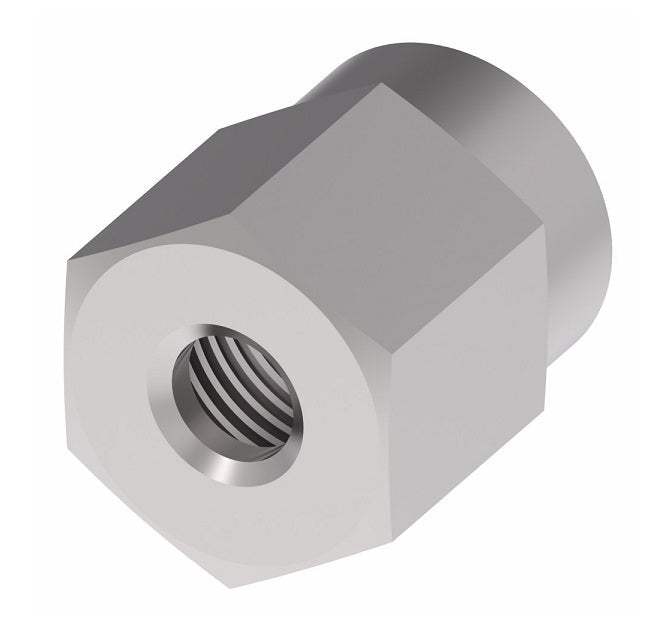

FC1851-10S Aeroquip by Danfoss | ORS-TF Nut Adapter | -10 O-Ring Face Seal | Steel

FC1851-10S Aeroquip by Danfoss | ORS-TF Nut Adapter | -10 O-Ring Face Seal | Steel

$18.07 - $18.07
$18.07
$18.07 - $18.07
$18.07

Aeroquip® by Danfoss
ORS-TF Nut Adapter - O-Ring Face Seal

(Formerly Eaton Aeroquip)

The ORS-TF tube fitting utilizing the ORS-TF nut, ferrule and sleeve can be joined directly to steel tubing to solve your fluid leakage problems. It does not require the time and expense of brazing and provides the advantage of repetitive reuse. It is a compression type fitting that works on a variety of tubing.
Specifications for Variant SKU: FC1851-10S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 5/8in O-Ring Face Seal
Material(s): Steel
Construction:
  • Material: Steel
  • Buna-N O-Rings are standard.
Part Number Tube OD Thread A E Hex 1
FC1851-04S 0.25" 9/16-18 0.84" 0.26" 0.69"
FC1851-06S 0.38" 11/16-16 0.93" 0.38" 0.81"
FC1851-08S 0.50" 13/16-16 1.06" 0.51" 0.94"
FC1851-10S 0.63" 1-14 1.13" 0.63" 1.12"
FC1851-12S 0.75" 1-3/16-12 1.28" 0.76" 1.38"
FC1851-16S 1.00" 1-7/16-12 1.35" 1.01" 1.62"
FC1851-20S 1.25" 1-11/16-12 1.41" 1.26" 1.88"
FC1851-24S 1.50" 2-12 1.47" 1.51" 2.25"
