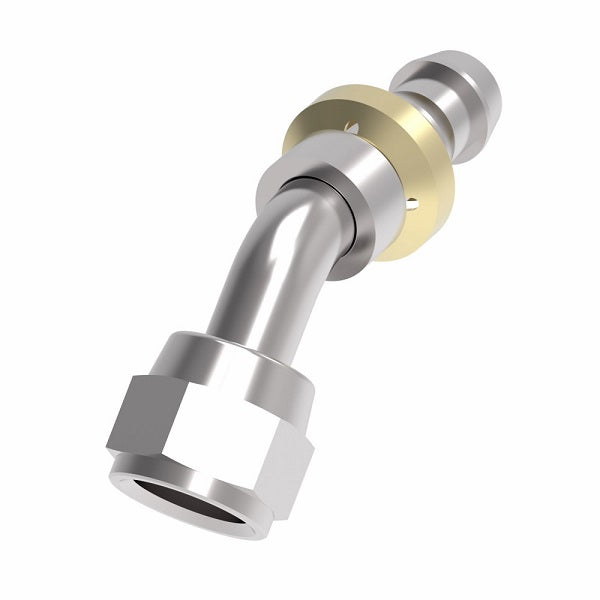

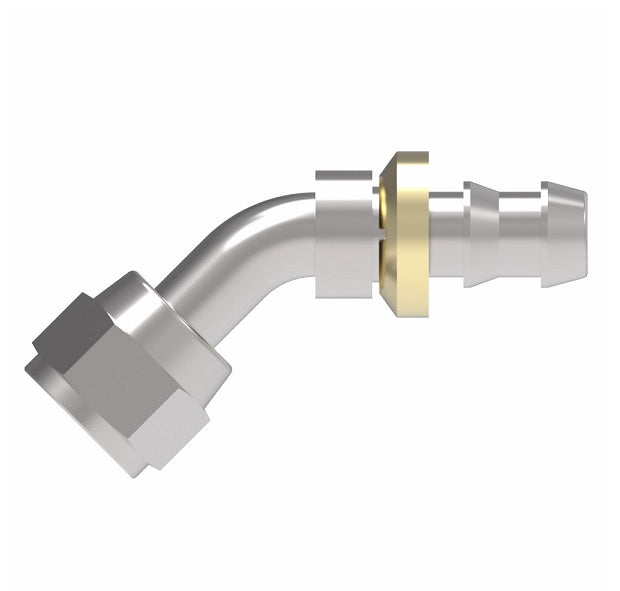

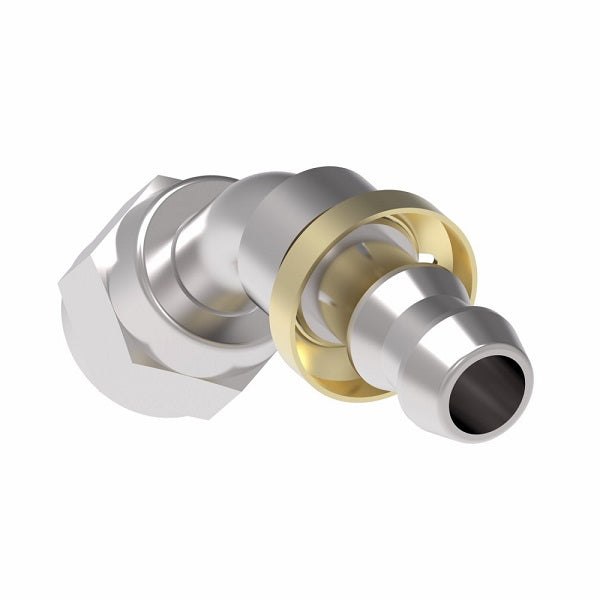

FC5847-0606S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

FC5847-0606S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -06 Push-On Hose Barb | Steel

Name: FC5847-0606S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -06 Push-On Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FC5847-0606S Danfoss
Price: 22.22 USD
Availability: InStock

$22.22 - $22.22

$22.22

$22.22 - $22.22

$22.22

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - FC Series - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5847-0606S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Female JIC, 3/8in Push-On Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2556 Series \| 2565 Series \| FC332 Series \| FC647 Series \| H201 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread Size	A	D	EØ	H
FC5847-0606S	-06	9/16-18	1.80"	0.93"	0.30"	0.39"
