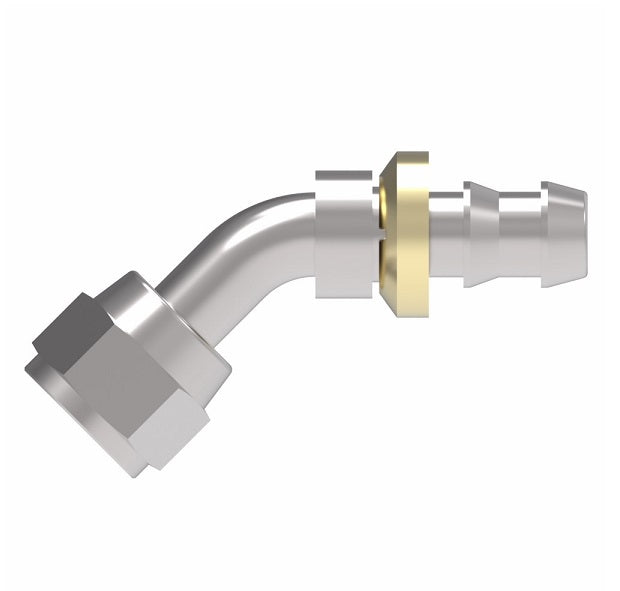

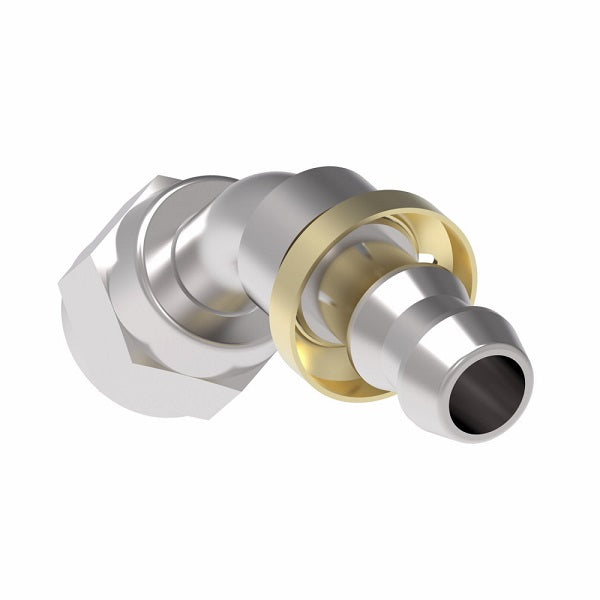

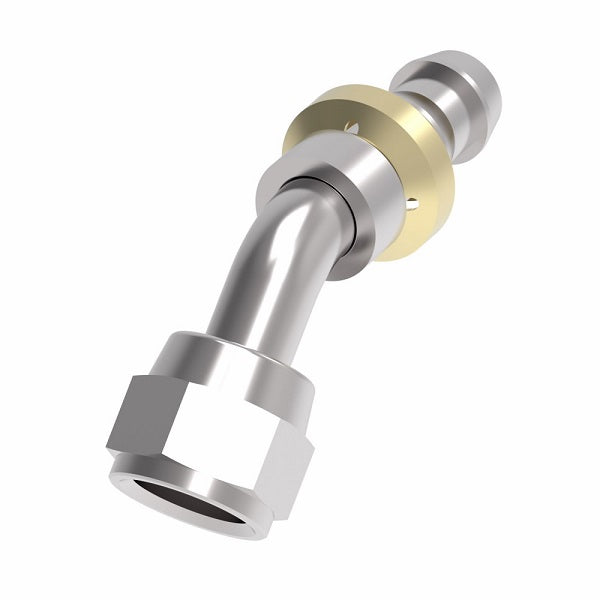

FC5849-0404S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Push-On Hose Barb | Steel
FC5849-0404S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Push-On Hose Barb | Steel
FC5849-0404S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Push-On Hose Barb | Steel
FC5849-0404S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Push-On Hose Barb | Steel

FC5849-0404S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Push-On Hose Barb | Steel

$24.54 - $24.54
$24.54
$24.54 - $24.54
$24.54

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - FC Series - Female Universal Swivel - 45° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

Double notch in nut for Universal type identification for both SAE 45° and 37° (JIC) connections.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC5849-0404S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Female JIC, 1/4in Push-On Hose Barb, 1/4in Female SAE 45 Flare
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2556 Series  |   2565 Series  |   FC332 Series  |   FC647 Series  |   H201 Series
Technical Info:
Steel
Part Number 		Hose Size Thread Size A D EØ H
FC5849-0404S -04 7/16-20 1.56" 0.81" 0.17" 0.33"
FC5849-0808S -08 3/4-16 2.30" 1.28" 0.39" 0.55"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
