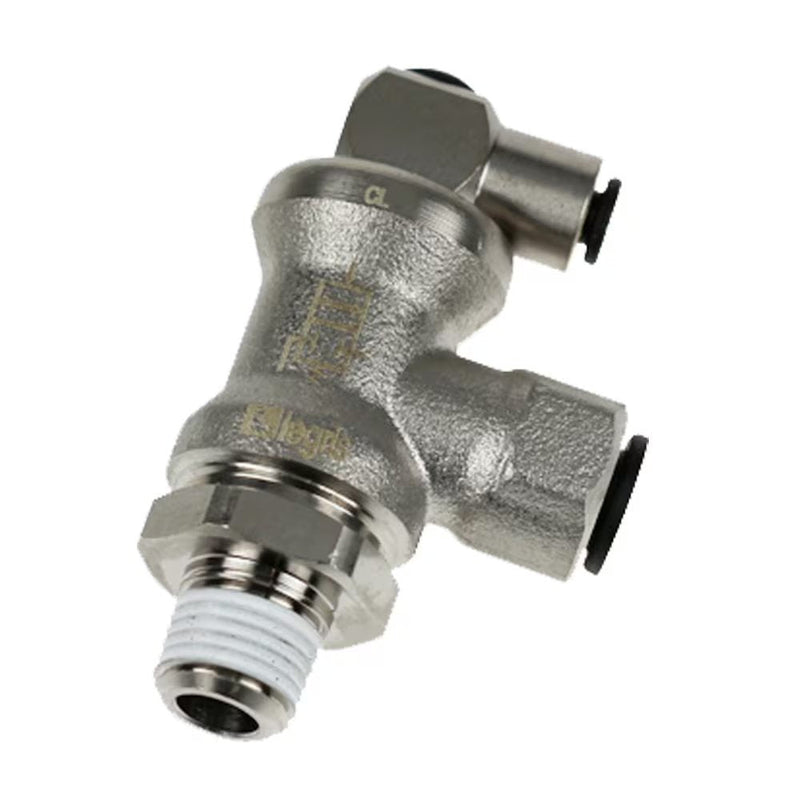

FC601-8-8 by Parker | Push-to-Connect Lock Out Valve | 1/2" Push-to-Connect x 1/2" Male NPT Thread | 2.19" Length | Multi-Plane Swivel | Brass

FC601-8-8 by Parker | Push-to-Connect Lock Out Valve | 1/2" Push-to-Connect x 1/2" Male NPT Thread | 2.19" Length | Multi-Plane Swivel | Brass

Save $74.79 Save $74.79
$186.98
$186.98 - $186.98
$186.98
$112.19
$112.19 - $112.19
$112.19

by Parker Hannifin
Blocking Valves:FC601 Push-to-Connect Lock Out Valves
Specifications for Variant SKU: FC601-8-8 Parker
Series: FC601 Series
Shape (Orientation): Multi-Plane Swivel
Material(s): Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel, Silicone Free, Valved
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • NBR seals
  • Silicone free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Packaging
  • Textile
  • Machine Tools
Pressure Range: 15 to 145 PSI (1.0 to 9.9 bar)
Temperature Range: -4° to +160° F (-20° to +71.1° C)
Leak Rate: <3.2CCM
Number of Cycles: >10 Million at 68°F and 1 HZ
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size NPT Hex H H1 H2 L
FC601-4-2 1/4" 1/8" 21 mm 2.03" 1.24" .79" 1.10"
FC601-4-4 1/4" 1/4" 21 mm 2.03" 1.24" .79" 1.10"
FC601-6-6 3/8" 3/8" 24 mm 2.19" 1.14" 1.04" 1.38"
FC601-8-8 1/2" 1/2" 24 mm 2.19" 1.14" 1.04" 1.69"
