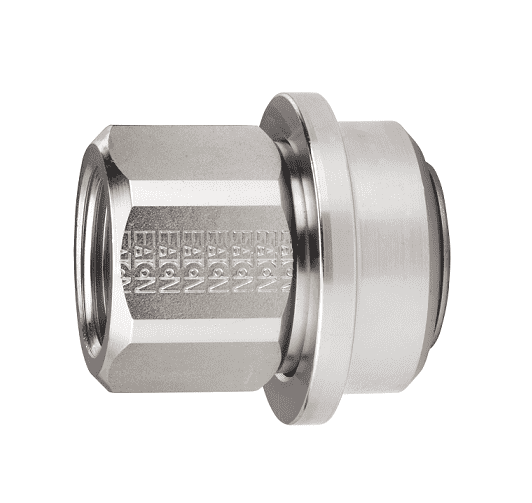

FD14-1001-12-06 Weatherhead by Danfoss | Quick Disconnect Oil Drain Coupling | FD14 Series | 3/8" Body Size x 3/4-14 Dryseal NPTF | Socket | Valved | FKM Seal | Carbon Steel

FD14-1001-12-06 Weatherhead by Danfoss | FLOCS Quick Disconnect Oil Drain Coupling | FD14 Series | 3/8" Body Size x 3/4-14 Dryseal NPTF | Socket | Valved | Buna-N Seal | Carbon Steel

$405.39 - $405.39
$405.39
$405.39 - $405.39
$405.39

Hansen® by Danfoss
FLOCS Oil Drain Coupling | FD14 Series

Danfoss' FD14 Drain Coupling is designed to serve as a drain port for use with Danfoss' FLOCS (Fast Lube Oil Change System) as well as providing a purging port for use during pre-fill operations.

The FD14 provides a leak free push to connect operation for improving speed and efficiency for oil evacuation systems.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FD14-1001-12-06 Danfoss
Brand: Hansen
Series: FD14 Series
Shape (Orientation): Straight
Material(s): Carbon Steel
Seal Material(s): Viton/FKM
Special Properties: Valved
Features:
  • Low-Profile design with multiple sealing mechanisms.
  • Push-To-Connect socket/female half for easy one hand operation.
  • Utilizes a Copper-Crush gasket to seat against the port face.
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating with zinc die-cast valve.
  • Standard plug/male half seal material: FKM.
  • Standard socket/female half seal material: Buna-N.
Applications & Markets:
  • Automated oil evacuation systems.
  • Gravity drain oil evacuation systems.
Body Size Max. Operating Pressure Min. Burst Pressure
Connected		 Vacuum
Connected Only		 Rated Flow
3/8" 3.5 bar 50 psi 7.0 bar 200 psi 28 in/Hg 12 lpm 3 gpm
Plug/Male
(Figure 1)
Socket/Female, Valved
(Figure 2)
Socket/Female, Non-Valved
(Figure 3)
FD14 Series | Plugs
Plug, Gasket, & Cap
Assembly
Part Number		 Gasket
(Copper-Crush)
Part Number		 Cap
(Brass)
Part Number		 Coupling Type Body Size Thread Figure Dimensions Min. Assy. Torque
A B Hex
FD14-4002-20-06 FD14-1206-08 FD14-1210-06 Plug/Male 3/8" 1-1/16-12 UN-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1 1/2"
(38.1mm)		 41-81 N-m 30-60* lbs-ft
FD14-4002-05-06 FD14-1206-11 FD14-1210-06 Plug/Male 3/8" 1-1/4-18 UNEF-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1-1/2"
(38.1mm)		 41-81 N-m 30-60* lbs-ft
FD14-4002-14-06 FD14-1206-09 FD14-1210-06 Plug/Male 3/8" 1 1/8-12 UNF-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1-1/2"
(38.1mm)		 41-81 N-m 30-60* lbs-ft
FD14-4002-01-06* FD14-1206-01 FD14-1210-06 Plug/Male 3/8" 1/2-20 UNF-2A 1 1.52"
(38.6mm)		 0.96"
(24.4mm)		 1-1/16"
(27.0mm)		 27-33 N-m 20-24* lbs-ft
FD14-4002-06-06 FD14-1206-07 FD14-1210-06 Plug/Male 3/8" 1-18 UNS-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1-1/4"
(31.8mm)		 41-81 N-m 30-60* lbs-ft
FD14-4002-26-06 None Needed FD14-1210-06 Plug/Male 3/8" 3/4-14 DRYSEAL NPTF 1 1.72"
(43.8mm)		 0.96"
(24.4mm)		 1-1/4"
(31.8mm)		 - -
FD14-4002-09-06 FD14-1206-04 FD14-1210-06 Plug/Male 3/8" 3/4-16 UNF-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1-1/4"
(31.8mm)		 41-68 N-m 30-50* lbs-ft
FD14-4002-10-06 FD14-1206-06 FD14-1210-06 Plug/Male 3/8" 7/8-14 UNF-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1-1/4"
(31.8mm)		 41-81 N-m 30-60* lbs-ft
FD14 Series | Socket, Valved
Part Number Coupling Type Body Size Thread Figure Dimensions
A B Hex

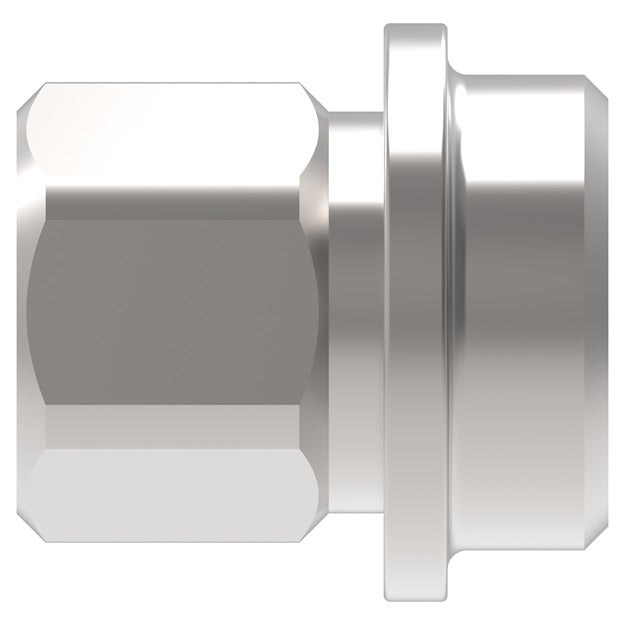

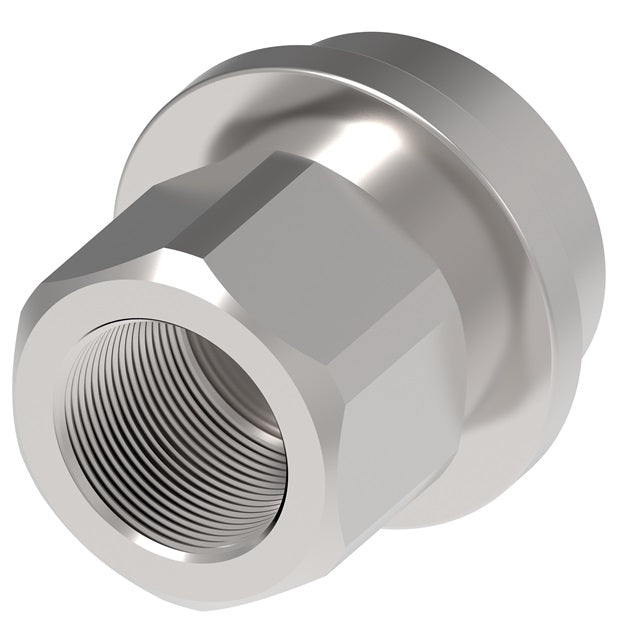

FD14-1001-12-06 Socket/Female 3/8" 3/4-14 Dryseal NPTF 2 1.83"
(46.5mm)		 1.80"
(45.7mm)		 1-5/16"
(33.0mm)
FD14 Series | Socket, Non-Valved
Part Number Coupling Type Body Size Thread Figure Dimensions
A B Hex
FD14-4003-10-06 Socket/Female 3/8" 5/8" SOCKETLESS™ 3 2.34"
(59.4mm)		 1.50"
(38.1mm)		 -

* CAUTION: Failure to meet minimum assembly torque could result in fluid leakage.
