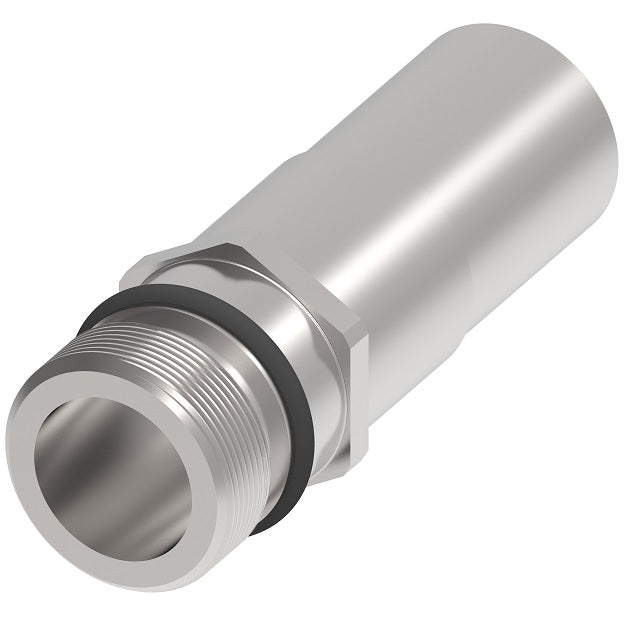

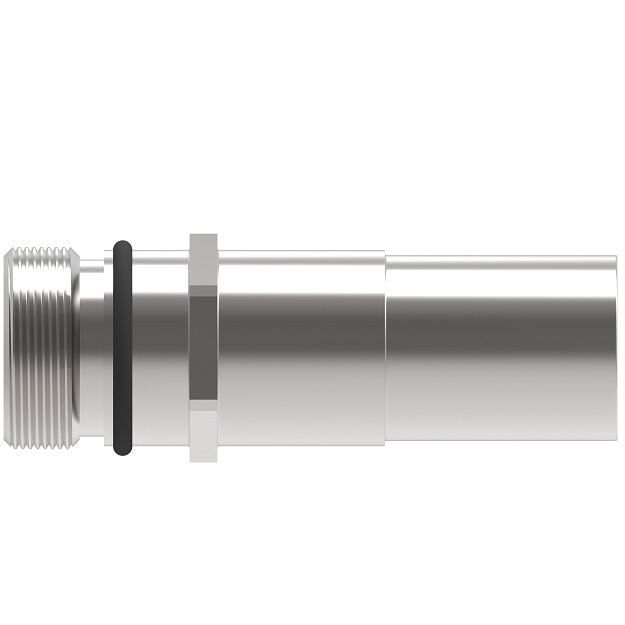

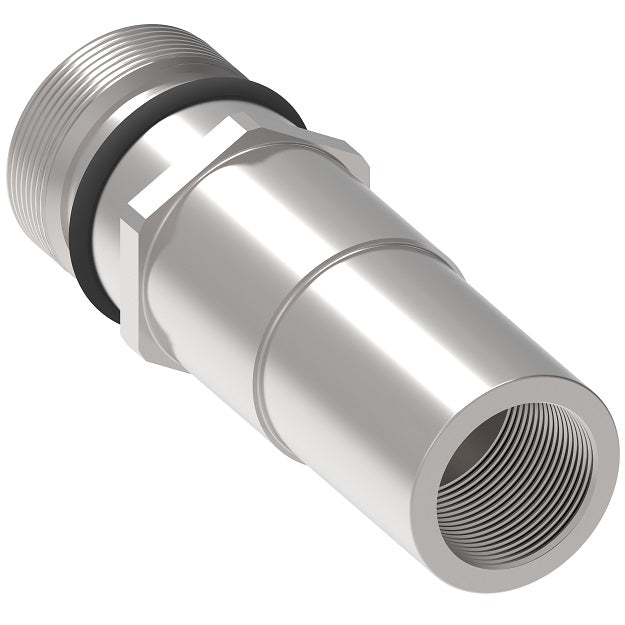

FD86-1040-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | FD86 Series | 1" Female NPT x 1" Thread to Connect 5,000 psi Dry Break High Impulse | Plug | FKM Seal | Steel

$254.48

Hansen® by Danfoss
FD86 Series | Thread to Connect 5,000 psi Dry Break - High Impulse

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen FD86 Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities.

The maximum operating pressure is 5,000 psi.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FD86-1040-16-16 Danfoss
Brand: Hansen
Series: FD86 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Viton/FKM
Product Features:
  • Tubular valve and sleeve construction for low fluid loss and air inclusion.
  • Thread together design using wing or hex nut allows connection and disconnection against pressures up to 750 psi.
  • Teflon back-up rings along with secondary metal-tometal sealing contact provides high impulse capability up to 5,000 psi operating pressure.
  • Acme threads prevent galling and provide ease of connection.
Applications & Markets:
  • Hydraulic and Fluid Transfer
  • Mining Equipment
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating.
  • Standard seal materials: Nitrile (NBR) & FKM.
Body Size Max. Operating Pressure Min. Burst Pressure Vacuum
Connected Only
Rated Flow Air Inclusion Fluid Loss
1" 345 bar 5,000 psi 1,034 bar 15,000 psi 28 in.Hg 189 lmp 50 gpm 2.90 cc max 0.72 cc max
1-1/4" 345 bar 5,000 psi 1,034 bar 15,000 psi 28 in.Hg 284 lmp 75 gpm 4.61 cc max 1.00 cc max
Plug/Male (Figure 1)
Socket/Female
Wing Nut Style
(Figure 2)
Socket/Female
Hex Nut Style
(Figure 3)
Dimensions (Female NPT)
Part Number Part Number Coupling
Type
Body
Size
Port
Size
Thread Figure Dimensions
NBR FKM A B Hex
FD86-1002-16-16 FD86-1040-16-16 Plug/Male 1" 1-11-1/2 1-11-1/2 Female NPT 1 4.40"
(111.8mm)
2.11"
(53.6mm)
1.75"
(44.5mm)
FD86-1001-16-16 FD86-1039-16-16 Socket/Female 1" 1-11-1/2 1-11-1/2 Female NPT 2 4.98"
(126.5mm)
4.50"
(114.3mm)
-
FD86-1004-16-16 - Socket/Female 1" 1-11-1/2 1-11-1/2 Female NPT 3 4.98"
(126.5mm)
2.81"
(71.4mm)
1.62"
(15.8mm)

FD86-1002-20-20 - Plug/Male 1-1/4" 1-1/4-11-1/2 1-1/4-11-1/2 Female NPT 1 4.43"
(112.5mm)
2.48"
(63.0mm)
2.25"
(57.2mm)
FD86-1001-20-20 - Socket/Female 1-1/4" 1-1/4-11-1/2 1-1/4-11-1/2 Female NPT 2 5.62"
(142.8mm)
5.25"
(133.4mm)
-
FD86-1004-20-20 - Socket/Female 1-1/4" 1-1/4-11-1/2 1-1/4-11-1/2 Female NPT 3 5.62"
(142.8mm)
3.40"
(86.4mm)
2.00"
(50.8mm)
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
