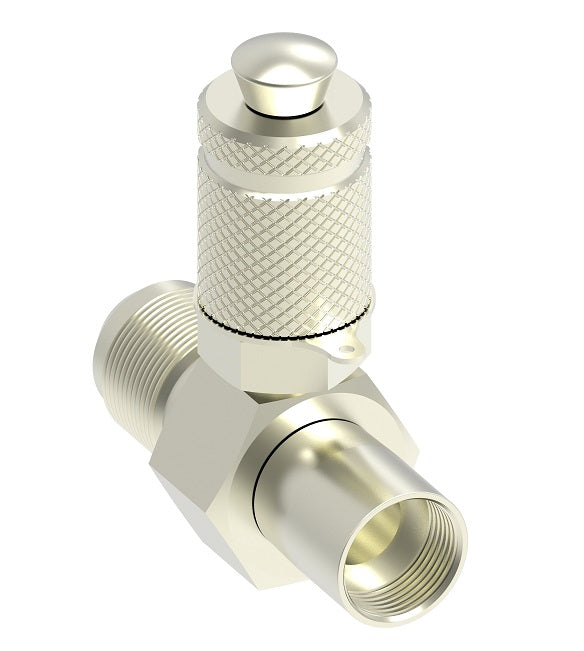

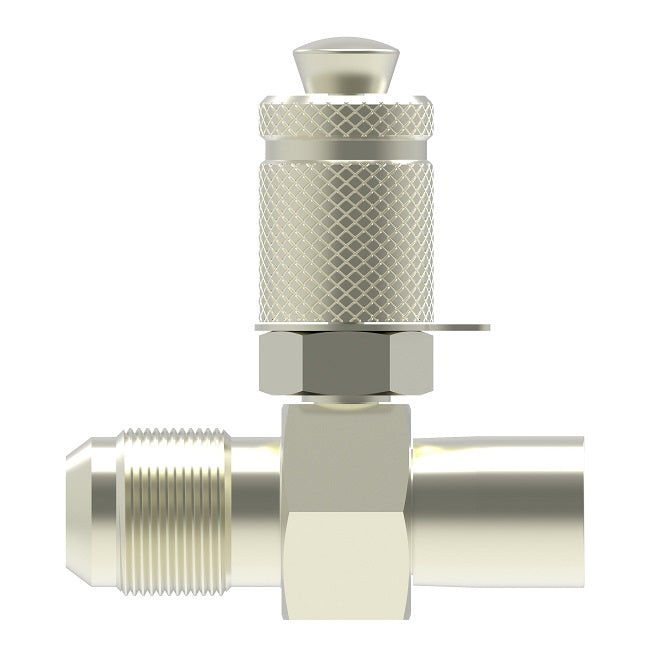

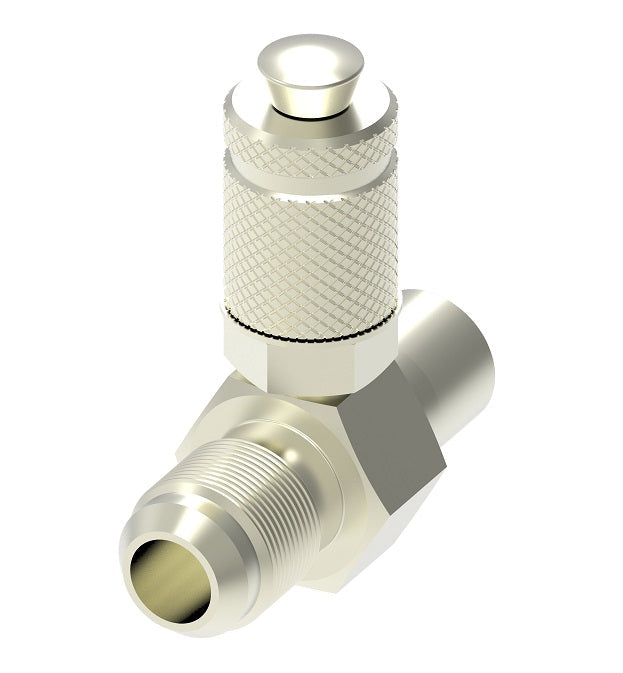

FF14790 Hansen® by Danfoss | Test Coupling | Swivel Run Tee | 7/16-20 Male UNF x 7/16-20 Female UNF | FKM Seal | Nickel Plated Steel

FF14790 Hansen® by Danfoss | Test Coupling | Swivel Run Tee | 7/16-20 Male UNF x 7/16-20 Female UNF | FKM Seal | Nickel Plated Steel

$95.48 - $95.48

$95.48

$95.48 - $95.48

$95.48

Hansen® by Danfoss
Test Coupling | Swivel Run Tee

Specifications for Variant SKU: FF14790 Danfoss
Brand:	Hansen
Shape (Orientation):	Straight
Material(s):	Zinc/Nickel-Plated Steel
Seal Material(s):	Viton/FKM

Applications & Markets:	Hydraulics and mineral based fluids Agricultural equipment Construction equipment On-Highway vehicles Industrial equipment
Couplings/Adapters:	Standard body material: Zinc Nickel Plated Steel. Standard seal material: FKM. 345 bar (5,000 psi) connect under pressure. 630 bar (9,000 psi) working pressure.


Part Number	Thread #1	Thread #2	Dimensions			Bag Quantity
Part Number	Thread #1	Thread #2	A	B	Hex 1	Bag Quantity
FF14790	7/16-20 Male UNF	7/16-20 Female UNF	1.88" (47.7mm)	0.79" (20.0mm)	1.06" (27.0mm)	2
FF14791	9/16-18 Male UNF	9/16-18 Female UNF	1.88" (47.7mm)	0.79" (20.0mm)	1.06" (27.0mm)	2
FF14792	3/4-16 Male UNF	3/4-16 Female UNF	1.88" (47.7mm)	0.79" (20.0mm)	1.06" (27.0mm)	2
