FF2035T0606S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel

FF2035T0606S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel

Name: FF2035T0606S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel
Brand: Danfoss/Eaton
SKU: FF2035T0606S Danfoss
Price: 34.05 USD
Availability: InStock

$34.05 - $34.05

$34.05

$34.05 - $34.05

$34.05

Aeroquip® by Danfoss

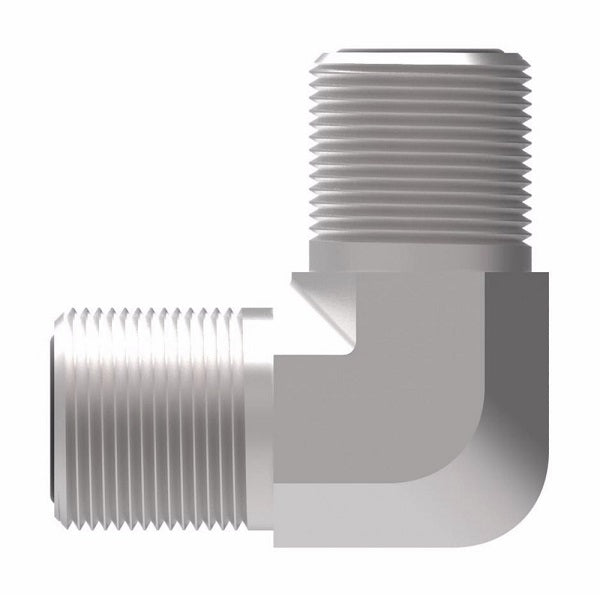

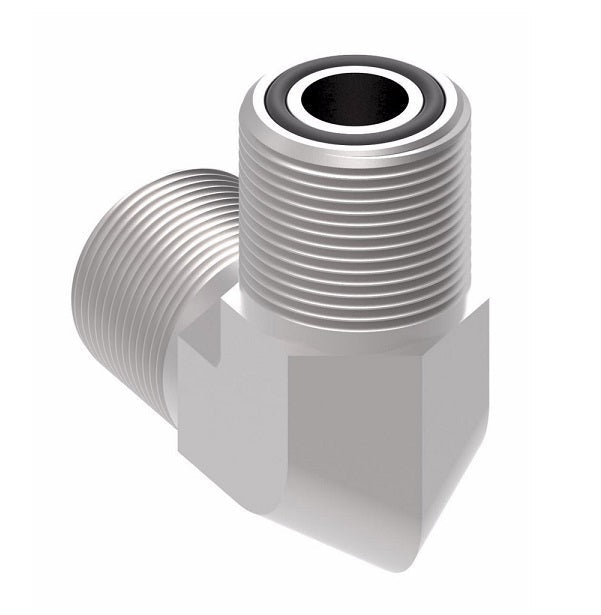

ORS Male/ORS Male Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2035T0606S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Male O-Ring Face Seal, 3/8in Male O-Ring Face Seal
Material(s):	Steel

Specifications:
Ref. SAE 520201
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF2035T0404S	0.25"	9/16-18	9/16-18	0.85"	0.85"
FF2035T0604S	0.38"	11/16-16	9/16-18	0.98"	0.92"
FF2035T0606S	0.38"	11/16-16	11/16-16	0.98"	0.98"
FF2035T0808S	0.50"	13/16-16	13/16-16	1.10"	1.10"
FF2035T1010S	0.63"	1-14	1-14	1.31"	1.31"
FF2035T1212S	0.75"	1-3/16-12	1-3/16-12	1.47"	1.47"
FF2035T1616S	1.00"	1-7/16-12	1-7/16-12	1.64"	1.64"
FF2035T2020S	1.25"	1-11/16-12	1-11/16-12	1.76"	1.76"
