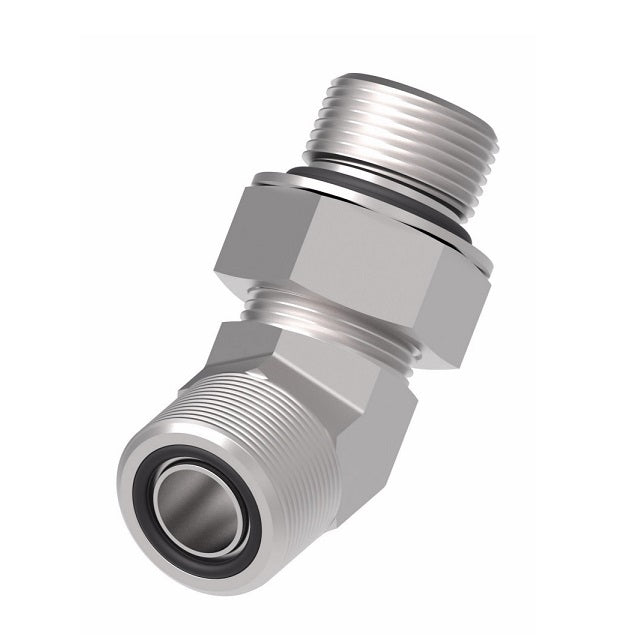

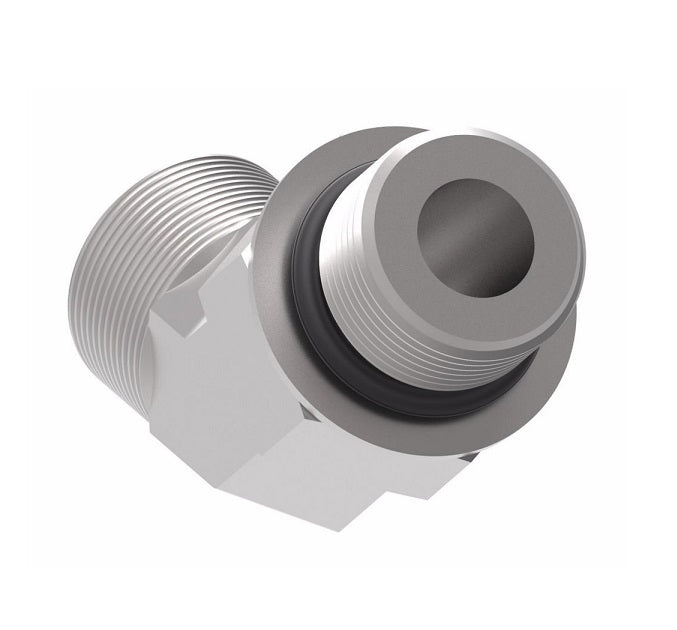

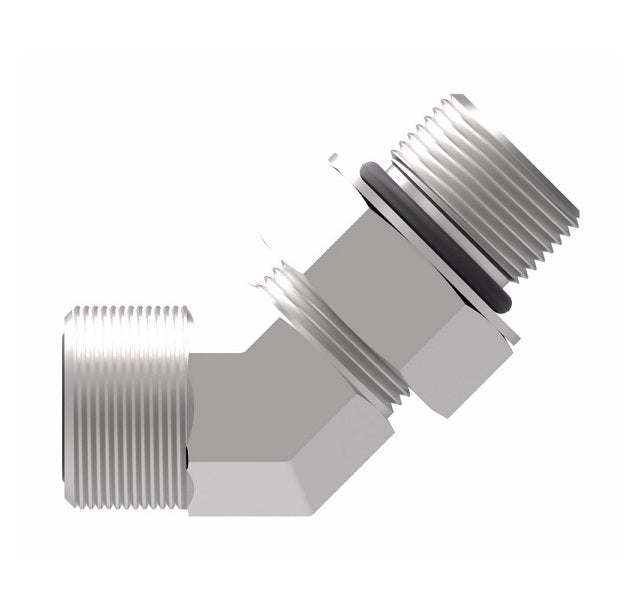

FF2068T1210S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 45° Elbow Adapter | -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel
FF2068T1210S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 45° Elbow Adapter | -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel
FF2068T1210S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 45° Elbow Adapter | -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel
FF2068T1210S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 45° Elbow Adapter | -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel

FF2068T1210S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 45° Elbow Adapter | -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel

$29.98 - $29.98
$29.98
$29.98 - $29.98
$29.98

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss (adj.) Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2068T1210S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Male O-Ring Face Seal, 5/8in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520320
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B C
FF2068T0404S 0.25" 9/16-18 7/16-20 0.63" 1.18" 0.41"
FF2068T0406S 0.25" 9/16-18 9/16-18 0.68" 1.30" 0.46"
FF2068T0408S 0.25" 9/16-18 3/4-16 0.67" 1.43" 0.52"
FF2068T0604S 0.38" 11/16-16 7/16-20 0.74" 1.22" 0.41"
FF2068T0608S 0.38" 11/16-16 9/16-18 0.74" 1.30" 0.46"
FF2068T0608S 0.38" 11/16-16 3/4-16 0.74" 1.43" 0.52"
FF2068T0806S 0.50" 13/16-16 9/16-18 0.80" 1.27" 0.46"
FF2068T0808S 0.50" 13/16-16 3/4-16 0.80" 1.43" 0.52"
FF2068T0810S 0.50" 13/16-16 7/8-14 0.82" 1.76" 0.62"
FF2068T0816S 0.50" 13/16-16 1-5/16-12 1.01" 2.06" 0.71"
FF2068T1008S 0.63" 1-14 3/4-16 0.92" 1.59" 0.52"
FF2068T1010S 0.63" 1-14 7/8-14 0.92" 1.76" 0.62"
FF2068T1012S 0.63" 1-14 1-1/16-12 0.96" 1.97" 0.71"
FF1868T1210S 0.75" 1-3/16-12 7/8-14 1.02" 1.81" 0.62"
FF2068T1212S 0.75" 1-3/16-12 1-1/16-12 1.02" 1.97" 0.71"
FF2068T1216S 0.75" 1-3/16-12 1-5/16-12 1.16" 2.06" 0.71"
FF2068T1612S 1.00" 1-7/16-12 1-1/16-12 1.18" 2.03" 0.71"
FF2068T1616S 1.00" 1-7/16-12 1-5/16-12 1.18" 2.03" 0.71"
FF2068T1620S 1.00" 1-7/16-12 1-5/8-12 1.26" 2.11" 0.71"
FF2068T2020S 1.25" 1-11/16-12 1-5/8-12 1.26" 2.11" 0.71"
FF2068T2424S 1.50" 2-12 1-7/8-12 1.45" 2.11" 0.71"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
