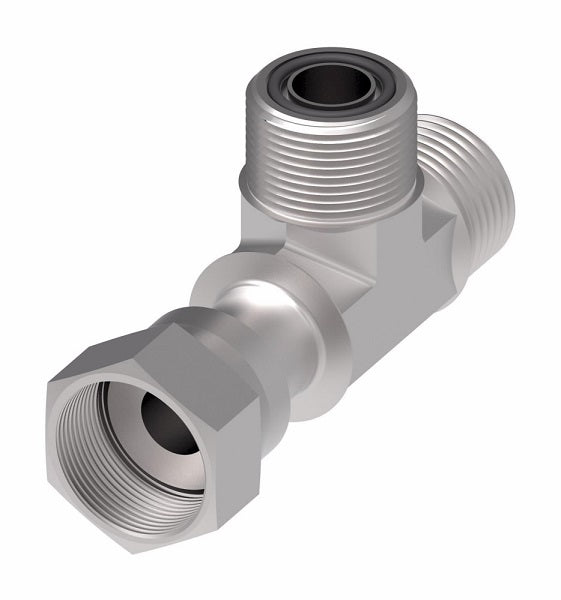

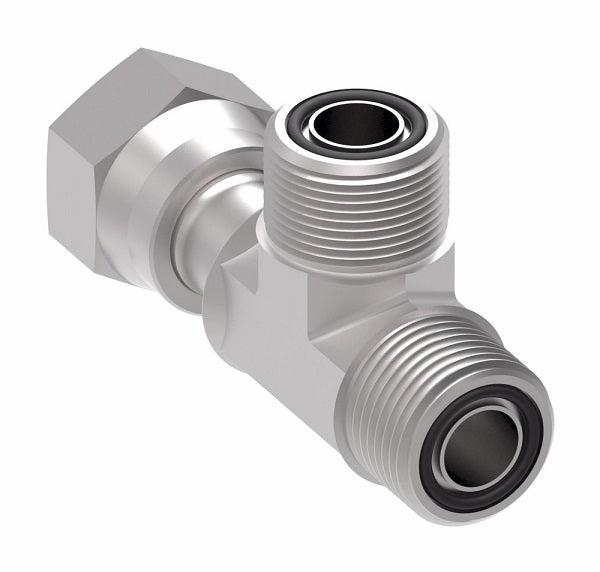

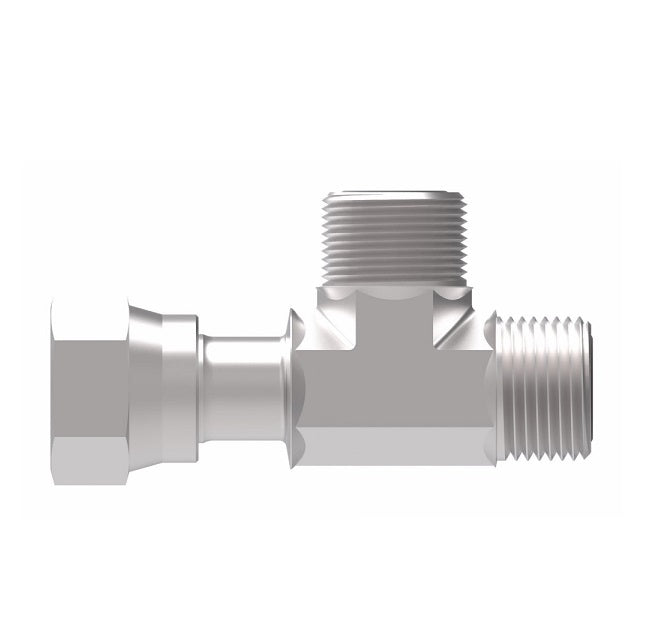

FF2114T0606S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Run Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal | Steel
FF2114T0606S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Run Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal | Steel
FF2114T0606S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Run Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal | Steel
FF2114T0606S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Run Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal | Steel

FF2114T0606S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Run Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal | Steel

$13.67 - $13.67
$13.67
$13.67 - $13.67
$13.67

Aeroquip® by Danfoss
ORS Male/ORS Male/ORS Female Run Tee Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Female O-Ring Face Seal

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2114T0606S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/8in Male O-Ring Face Seal, 3/8in Male O-Ring Face Seal, 3/8in Female O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520432
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B C
FF2114T0404S 0.25" 9/16-18 9/16-18 1.04" 0.85" 0.85"
FF2114T0606S 0.38" 11/16-16 11/16-16 1.15" 0.98" 0.98"
FF2114T0808S 0.50" 13/16-16 13/16-16 1.49" 1.10" 1.10"
FF2114T1010S 0.63" 1-14 1-14 1.62" 1.31" 1.31"
FF2114T1212S 0.75" 1-3/16-12 1-3/16-12 1.82" 1.47" 1.47"
FF2114T1616S 1.00" 1-7/16-12 1-7/16-12 2.10" 1.64" 1.64"
FF2114T2020S 1.25" 1-11/16-12 1-11/16-12 2.29" 1.76" 1.76"
FF2114T2424S 1.50" 2-12 2-12 2.41" 1.92" 1.92"
