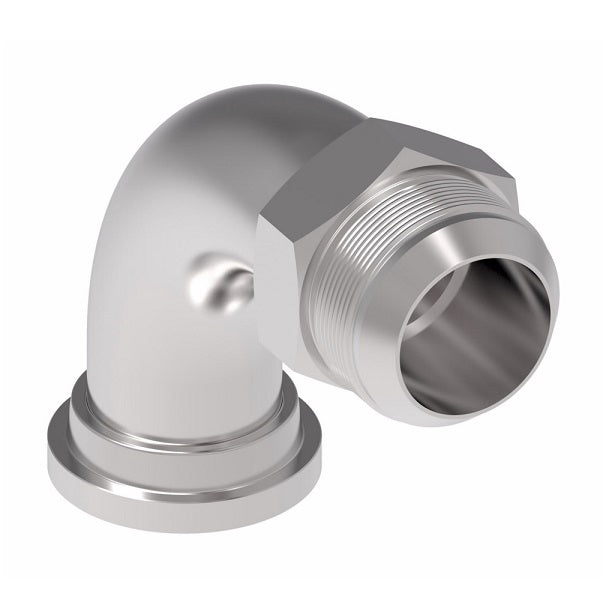

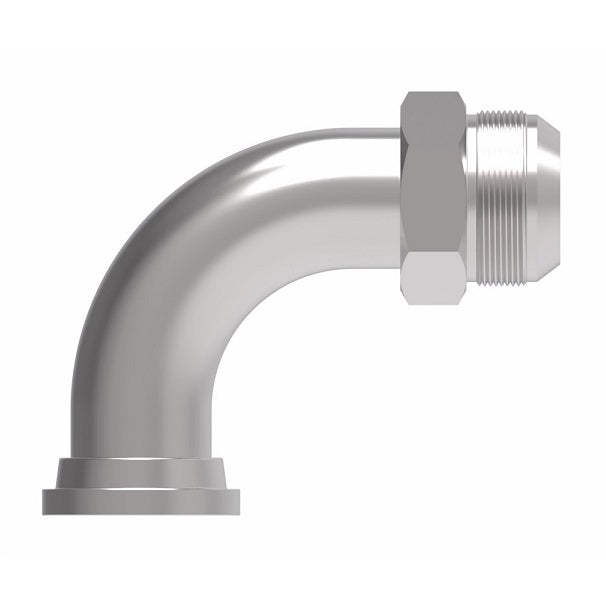

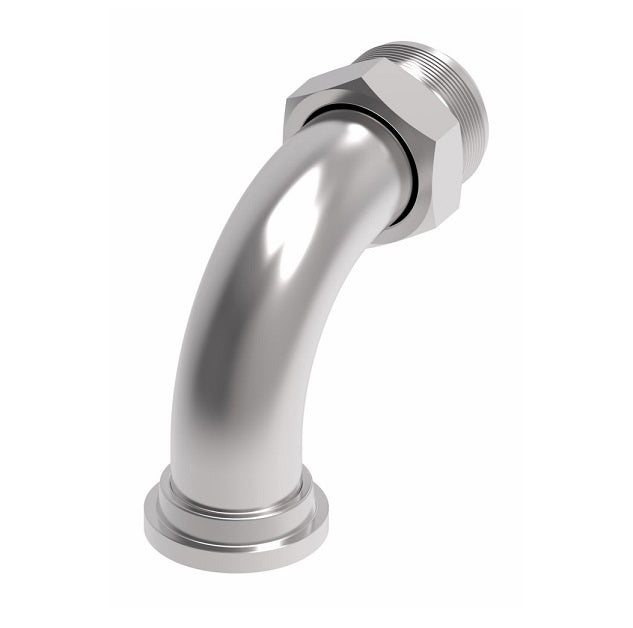

FF5162-2016S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -16 Male 37° JIC Flare | Steel
FF5162-2016S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -16 Male 37° JIC Flare | Steel
FF5162-2016S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -16 Male 37° JIC Flare | Steel
FF5162-2016S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -16 Male 37° JIC Flare | Steel

FF5162-2016S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -16 Male 37° JIC Flare | Steel

$64.18 - $64.18
$64.18
$64.18 - $64.18
$64.18

Aeroquip® by Danfoss
Code 61 Split Flange/37° JIC Flare Long Adapter
Code 61 Split Flange x Male 37° JIC Flare
Standard Pressure Series
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF5162-2016S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Code 61 Flange, 1in Male JIC
Material(s): Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • Mates with 449-74446 flanges.
Part Number Steel Split Flange Size Tube O.D. Thread T A B
FF5162-0808S 1/2" 0.50" 3/4-16 2.16" 1.62"
FF5162-1212S 3/4" 0.75" 1-1/16-12 2.81" 2.13"
FF5162-1612S 1" 0.75" 1-1/16-12 2.81" 2.13"
FF5162-1616S 1" 1.00" 1-5/16-12 3.41" 2.38"
FF5162-1620S 1" 1.25" 1-5/8-12 3.46" 2.38"
FF5162-2016S 1-1/4" 1.00" 1-5/16-12 3.41" 2.38"
FF5162-2020S 1-1/4" 1.25" 1-5/8-12 3.71" 2.62"
FF5162-2420S 1-1/2" 1.25" 1-5/8-12 3.71" 2.62"
FF5162-2424S 1-1/2" 1.50" 1-7/8-12 4.33" 3.12"
FF5162-3232S 2" 2.00" 2-1/2-12 5.71" 4.50"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
