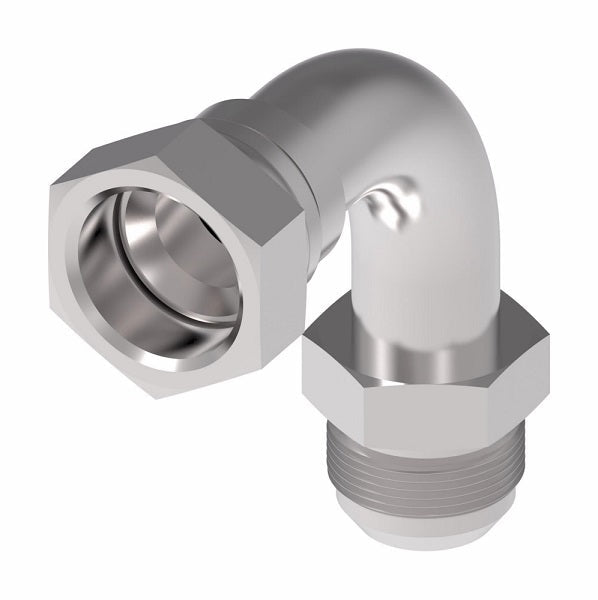

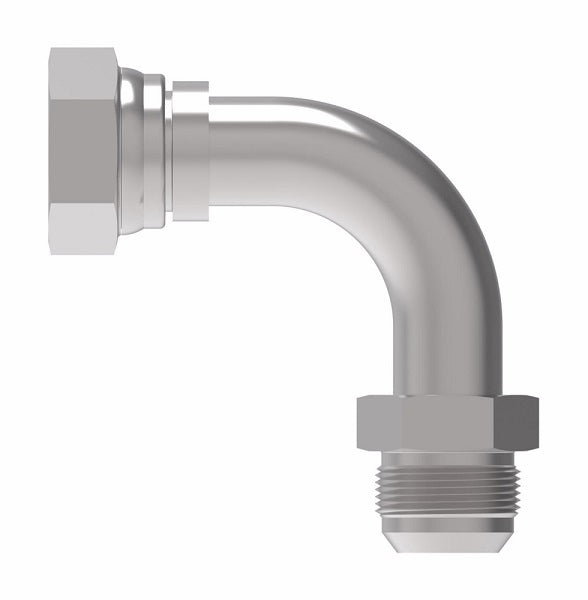

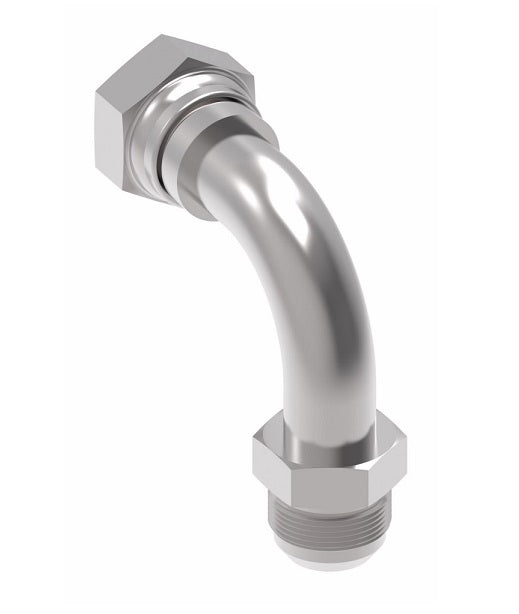

FF5163-1212S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare | Steel

FF5163-1212S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare | Steel

Name: FF5163-1212S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: FF5163-1212S Danfoss
Price: 78.08 USD
Availability: InStock

$78.08 - $78.08

$78.08

$78.08 - $78.08

$78.08

Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF5163-1212S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Male JIC
Material(s):	Steel
Special Properties:	Swivel


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
FF5163-0808S	0.50"	3/4-16	3/4-16	1.87"	2.16"
FF5163-1212S	0.75"	1-1/16-12	1-1/16-12	2.35"	2.81"
FF5163-1616S	1.00"	1-5/16-12	1-5/16-12	3.04"	3.41"
FF5163-2020S	1.25"	1-5/8-12	1-5/8-12	3.40"	3.71"
FF5163-2424S	1.50"	1-7/8-12	1-7/8-12	3.95"	4.33"
