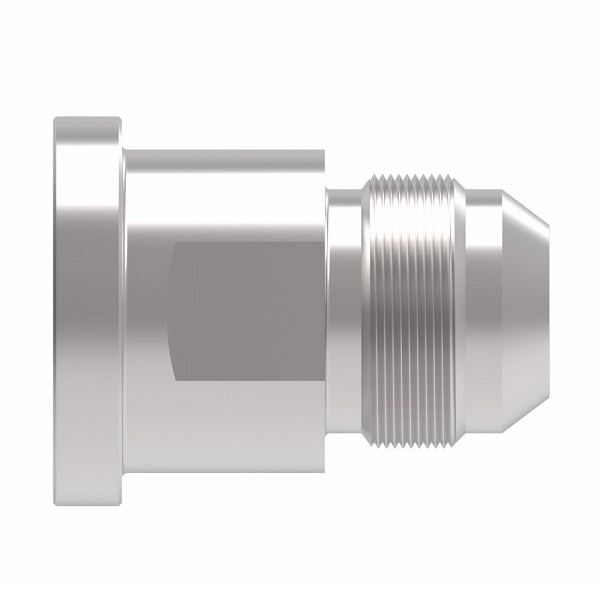

FF5541-2420S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -20 Male 37° JIC Flare | Steel

FF5541-2420S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -20 Male 37° JIC Flare | Steel

$73.28 - $73.28
$73.28
$73.28 - $73.28
$73.28

Aeroquip® by Danfoss
Code 62 Split Flange/37° JIC Flare Adapter
Code 62 Split Flange x Male 37° JIC Flare
Standard Pressure Series
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF5541-2420S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Code 62 Flange, 1-1/4in Male JIC
Material(s): Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • Mates with FC3425- size-449 flanges.
Part Number Steel Split Flange Size Tube O.D. Thread T A
FF5541-1212S 3/4" 0.75" 1-1/16-12 3.17"
FF5541-1616S 1" 1.00" 1-5/16-12 3.76"
FF5541-2016S 1-1/4" 1.00" 1-5/16-12 3.76"
FF5541-2020S 1-1/4" 1.25" 1-5/8-12 3.84"
FF5541-2416S 1-1/2" 1.00" 1-5/16-12 3.76"
FF5541-2420S 1-1/2" 1.25" 1-5/8-12 3.84"
FF5541-2424S 1-1/2" 1.50" 1-7/8-12 4.67"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
