FFX-04-08-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/4" Hose Barb x 1/2" Female O-Ring Face Seal Swivel | Carbon Steel

FFX-04-08-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/4" Hose Barb x 1/2" Female O-Ring Face Seal Swivel | Carbon Steel

Save $11.25 Save $11.25
$28.13
$28.13 - $28.13
$28.13
$16.88
$16.88 - $16.88
$16.88

Kurt Hydraulics
FFX - O-Ring Face Seal Female Swivel
Specifications for Variant SKU: FFX-04-08-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/2in Female O-Ring Face Seal
Material(s): Carbon Steel
Special Properties: Swivel

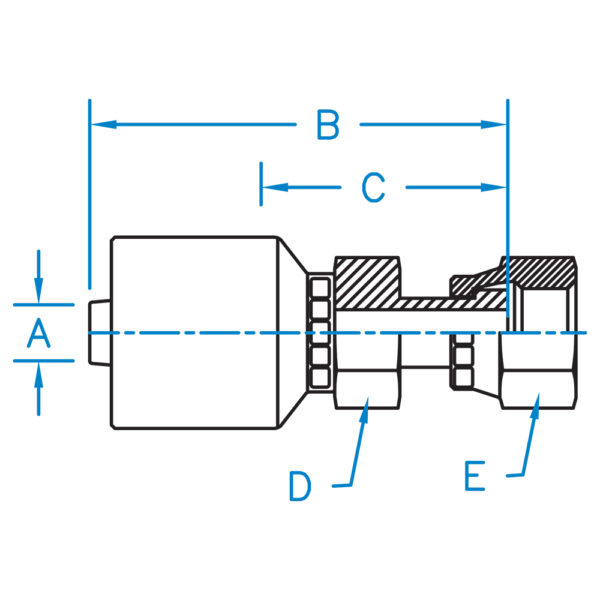

Part Number Hose I.D. (in.) B C D E Thread
FFX-04-04-K2 1/4" 2.18" 1.10" 9/16" 11/16" 9/16"-18
FFX-04-06-K2 1/4" 2.14" 1.06" 11/16" 13/16" 11/16"-16
FFX-04-08-K2 1/4" 2.28" 1.20" 3/4" 15/16" 13/16"-16
FFX-06-04-K2 3/8" 2.64" 1.27" 11/16" 11/16" 9/16"-18
FFX-06-06-K2 3/8" 2.43" 1.20" 11/16" 7/8" 11/16"-16
FFX-06-08-K2 3/8" 2.61" 1.24" 3/4" 15/16" 13/16"-16
FFX-08-06-K2 1/2" 2.47" 1.13" 11/16" 11/16" 11/16"-16
FFX-08-08-K2 1/2" 2.77" 1.43" 7/8" 1-1/16" 13/16"-16
FFX-08-10-K2 1/2" 2.86" 1.52" 15/16" 1-1/8" 1"-14
FFX-08-12-K2 1/2" 2.95" 1.61" 1-1/8" 1-3/8" 1-3/16"-12
