FFX-12-12-SST by Kurt Hydraulics | Female O-Ring Face Seal | Swivel | PTFE Coupling | for 3/4" Hose ID

FFX-12-12-SST by Kurt Hydraulics | Female O-Ring Face Seal | Swivel | PTFE Coupling | for 3/4" Hose ID

Save $2.72 Save $2.72
$24.45
$24.45 - $24.45
$24.45
$21.73
$21.73 - $21.73
$21.73

by Kurt Hydraulics
FFX-SST - O-Face Seal Female Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FFX-12-12-SST Kurt
Series: FFX Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Female O-Ring Face Seal
Special Properties: Swivel

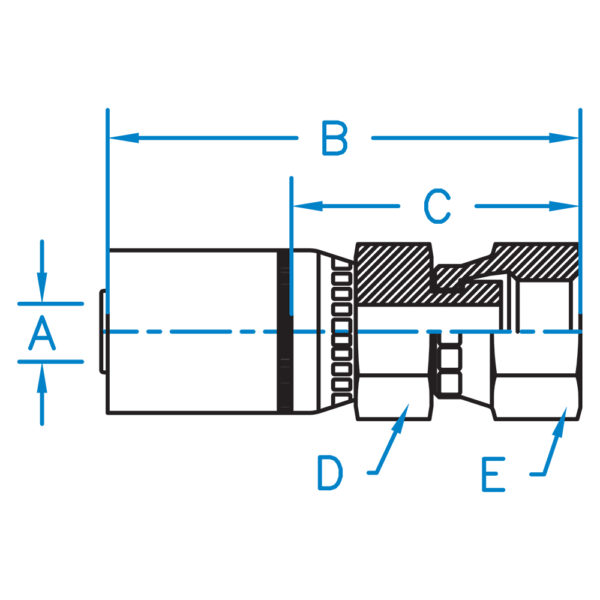

Part Number A B C D E Hose ID
(In)		 Thread
FFX-04-04-SST 0.250 2.597 1.517 9/16 11/16 1/4" 9/16-18
FFX-04-06-SST 0.250 2.652 1.517 5/8 11/16 1/4" 11/16-16
FFX-06-06-SST 0.375 2.920 1.608 3/4 13/16 3/8" 11/16-16
FFX-06-08-SST 0.375 3.216 1.720 7/8 15/16 3/8" 13/16-16
FFX-08-08-SST 0.500 3.285 1.720 7/8 15/16 1/2" 13/16-16
FFX-08-10-SST 0.500 3.285 1.720 7/8 15/16 1/2" 1-14
FFX-08-12-SST 0.500 3.352 1.954 1-1/8 1-3/8 1/2" 1-14
FFX-10-10-SST 0.625 3.285 1.720 7/8 15/16 5/8" 1-14
FFX-10-12-SST 0.625 3.710 1.954 1-1/8 1-3/8 5/8" 1-3/16-12
FFX-12-12-SST 0.750 3.710 1.954 1-1/8 1-3/8 3/4" 1-3/16-12
FFX-16-16-SST 1.000 4.360 2.110 1-3/8 1-5/8 1.000" 1-7/16-12

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
