FFX-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female O-Ring Face Seal | Swivel | for 3/4" Hose ID

Name: FFX-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female O-Ring Face Seal | Swivel | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: FFX-12-12-WHP Kurt
Price: 20.04 USD
Availability: InStock

Save $13.36

$33.40

$33.40 - $33.40

$33.40

$20.04

$20.04 - $20.04

$20.04

by Kurt Hydraulics
FFX-WHP - O-Ring Face Seal Female Swivel - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FFX-12-12-WHP Kurt
Series:	WHP Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Female O-Ring Face Seal
Special Properties:	Swivel

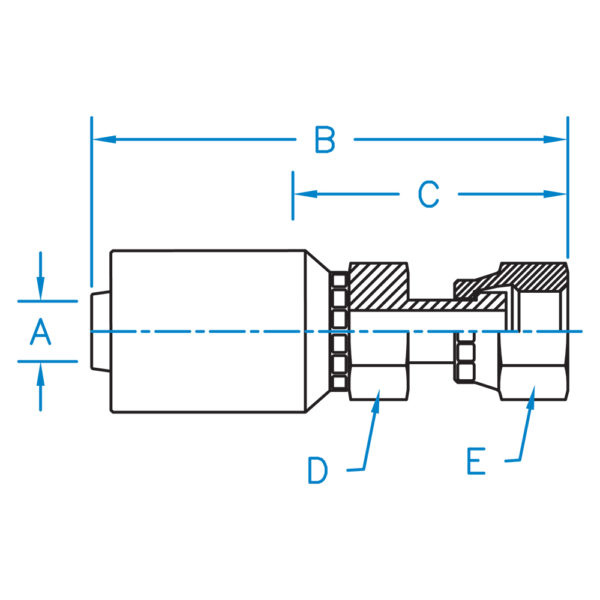

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FFX-12-12-WHP	0.750	4.100	1.670	1-1/8	1-3/8	3/4"	1-3/16-12
FFX-16-16-WHP	1	4.445	1.915	1-3/8	1-5/8	1.000"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
