FFX90-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female O-Ring Face Seal | 90° Elbow | Swivel | for 1-1/4" Hose ID

Save $9.87

$88.82

$88.82 - $88.82

$88.82

$78.95

$78.95 - $78.95

$78.95

by Kurt Hydraulics
FFX90-JJ - O-Ring Face Seal 90 deg. Bent Tube Female Swivel - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: FFX90-20-20-JJ Kurt
Series:	FFX90 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in Hose Barb, 1-1/4in Female O-Ring Face Seal
Special Properties:	Swivel

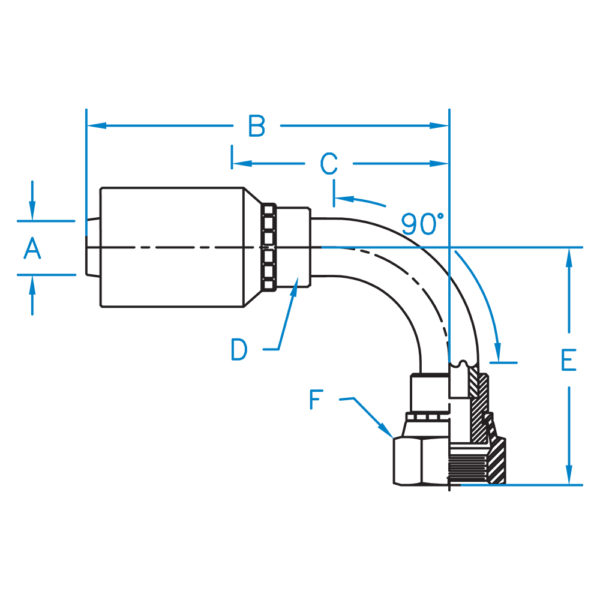

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FFX90-20-20-JJ	1-1/4	5.850	3.250	1-3/4R	2.910	1-7/8	1-1/4"	1-11/16 - 12
FFX90-24-24-JJ	1.500	6.36	3.72	2-1/8R	3.620	2-1/4	1-1/2"	2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
