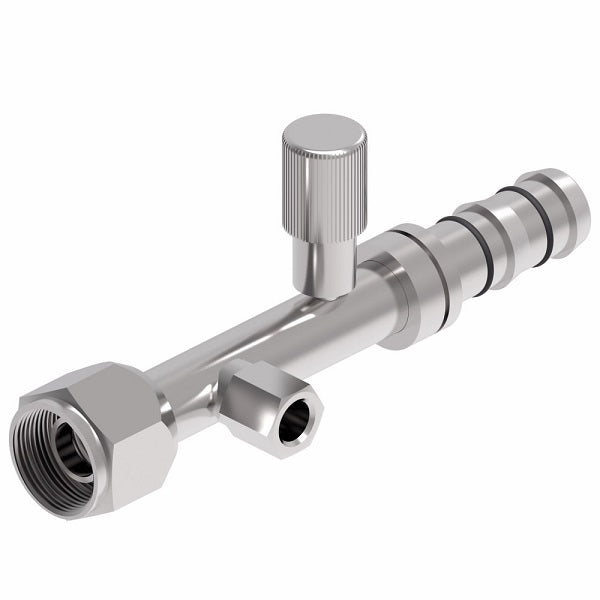

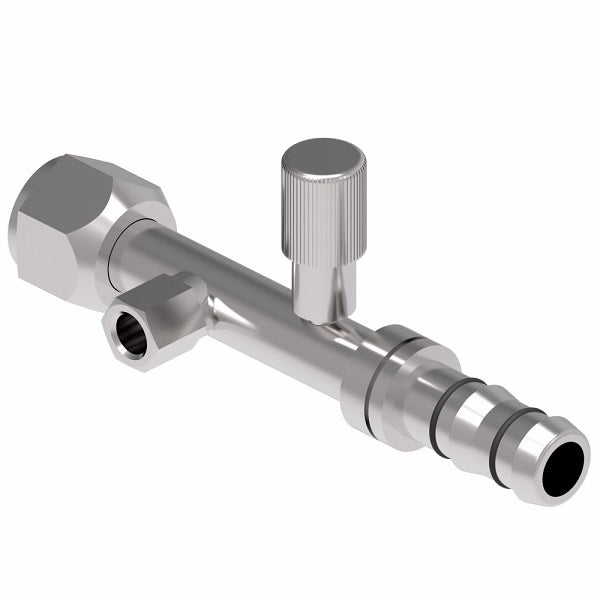

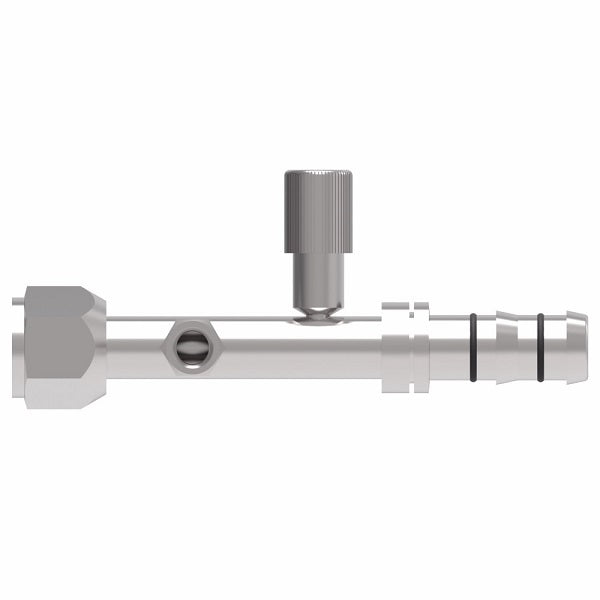

FJ3363-03-0808S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port & Female Switch Connection (1/8-27 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -08 Hose Barb | Steel
FJ3363-03-0808S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port & Female Switch Connection (1/8-27 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -08 Hose Barb | Steel
FJ3363-03-0808S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port & Female Switch Connection (1/8-27 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -08 Hose Barb | Steel
FJ3363-03-0808S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port & Female Switch Connection (1/8-27 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -08 Hose Barb | Steel

FJ3363-03-0808S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port & Female Switch Connection (1/8-27 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -08 Hose Barb | Steel

$107.35 - $107.35
$107.35
$107.35 - $107.35
$107.35

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Short Pilot) with R134a High Side port and Female Switch Connection (1/8-27 thd) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3363-03-0808S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 1/2in Female O-Ring Short Pilot, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3363-02-0810S* 3/4-16 -10 5.54" 3.62" 0.63" 0.88" FF14173 22546-13 FF90178-13
FJ3363-03-0808S* 3/4-16 -08 5.16" 3.62" 0.63" 0.88" FF14172 22546-13 FF90178-13

*Made to order
