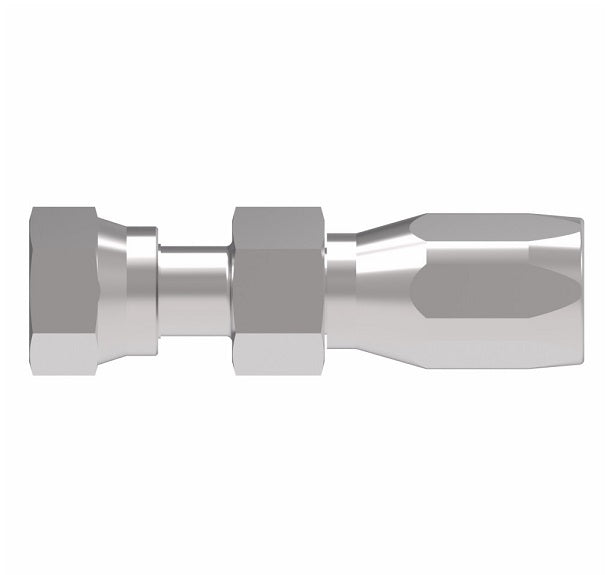

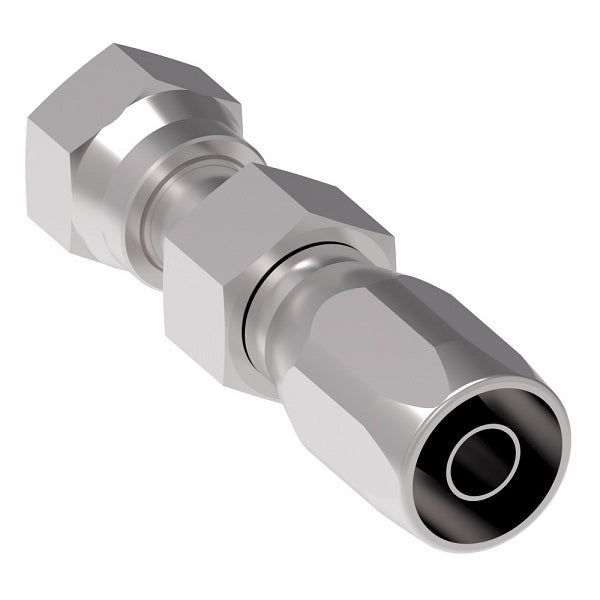

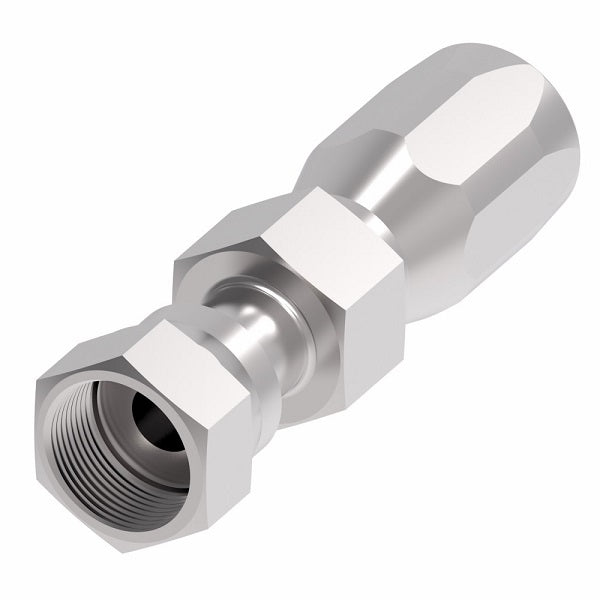

FJ9706-2424S Aeroquip by Danfoss | Female ORS Swivel 100R5 Reusable Hose Fitting | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel
FJ9706-2424S Aeroquip by Danfoss | Female ORS Swivel 100R5 Reusable Hose Fitting | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel
FJ9706-2424S Aeroquip by Danfoss | Female ORS Swivel 100R5 Reusable Hose Fitting | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel
FJ9706-2424S Aeroquip by Danfoss | Female ORS Swivel 100R5 Reusable Hose Fitting | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel

FJ9706-2424S Aeroquip by Danfoss | Female ORS Swivel 100R5 Reusable Hose Fitting | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel

$299.01 - $299.01
$299.01
$299.01 - $299.01
$299.01

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female O-Ring Face Seal (ORS) Swivel - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ9706-2424S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female O-Ring Face Seal, 1-1/2in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size "T" Thread A D EØ
FJ9706-0404S -04 9/16-18 2.09" 1.34" 0.13"
FJ9706-0606S -06 11/16-16 2.43" 1.53" 0.24"
FJ9706-0808S -08 13/16-16 3.13" 1.98" 0.36"
FJ9706-1010S -10 1-14 3.37" 2.08" 0.46"
FJ9706-1212S -12 1-3/16-12 3.68" 2.11" 0.55"
FJ9706-1616S -16 1-7/16-12 3.50" 2.23" 0.82"
FJ9706-2020S -20 1-11/16-12 3.64" 2.28" 1.05"
FJ9706-2424S -24 2-12 3.86" 2.40" 1.26"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
