FJX-04-03 by Kurt Hydraulics | Jump Size | Female 37 Degree JIC | Swivel | for 1/4" Hose ID

FJX-04-03 by Kurt Hydraulics | Jump Size | Female 37 Degree JIC | Swivel | for 1/4" Hose ID

Save $0.73 Save $0.73
$6.57
$6.57 - $6.57
$6.57
$5.84
$5.84 - $5.84
$5.84
by Kurt Hydraulics
FJX - 37 deg. JIC Female Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FJX-04-03 Kurt
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 3/16in Female JIC
Special Properties: Swivel, Jump Size

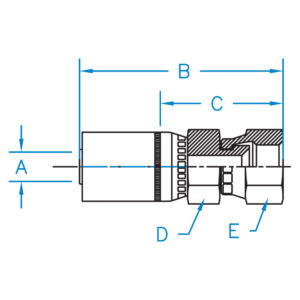

Part Number A B C D E Hose ID
(In)		 Thread
FJX-02-03 0.125 1.650 1.050 1/2 9/16 1/8" 3/8-24
FJX-02-04 0.125 1.720 1.100 1/2 9/16 1/8" 7/16-20
FJX-03-04 0.187 2.185 1.125 9/16 9/16 3/16" 7/16-20
FJX-03-05 0.187 2.185 1.125 9/16 5/8 3/16" 1/2-20
FJX-04-03 0.250 2.437 1.187 5/8 9/16 1/4" 3/8-24
FJX-04-04 0.250 2.355 1.100 9/16 9/16 1/4" 7/16-20
FJX-04-05 0.250 2.500 1.245 9/16 5/8 1/4" 1/2-20
FJX-04-06 0.250 2.454 1.194 9/16 11/16 1/4" 9/16-18
FJX-04-08 0.250 2.625 1.370 3/4 7/8 1/4" 3/4-16
FJX-06-04 0.375 2.616 1.116 11/16 9/16 3/8" 7/16-20
FJX-06-05 0.375 2.761 1.261 3/4 5/8 3/8" 1/2-20
FJX-06-06 0.375 2.699 1.360 11/16 11/16 3/8" 9/16-18
FJX-06-08 0.375 2.855 1.344 11/16 7/8 3/8" 3/4-16
FJX-06-10 0.375 3.011 1.516 7/8 1-1/16 3/8" 7/8-14
FJX-08-06 0.500 2.935 1.433 7/8 11/16 1/2" 9/16-18
FJX-08-08 0.500 2.854 1.594 7/8 7/8 1/2" 3/4-16
FJX-08-10 0.500 3.089 1.594 7/8 1-1/16 1/2" 7/8-14
FJX-08-12 0.500 3.185 1.690 1-1/8 1-1/4 1/2" 1-1/16-12
FJX-10-08 0.625 3.105 1.605 1-1/8 7/8 5/8" 3/4-16
FJX-10-10 0.625 3.167 1.667 1-1/8 1-1/16 5/8" 7/8-14
FJX-10-12 0.625 3.192 1.692 1-1/8 1-1/4 5/8" 1-1/16-12
FJX-12-08 0.750 3.198 1.605 1-1/4 7/8 3/4" 3/4-16
FJX-12-10 0.750 3.260 1.667 1-1/8 1-1/16 3/4" 7/8-14
FJX-12-12 0.750 3.251 1.704 1-1/8 1-1/4 3/4" 1-1/16-12
FJX-12-14 0.750 3.354 1.761 1-3/8 1-1/2 3/4" 1-3/16-12
FJX-12-16 0.750 3.234 1.665 1-3/8 1-1/2 3/4" 1-5/16-12
FJX-16-12 1.000 3.408 1.715 1-3/8 1-1/4 1.000" 1-1/16-12
FJX-16-14 1.000 N/A N/A N/A N/A 1.000" 1-3/16-12
FJX-16-16 1.000 3.391 1.657 1-3/8 1-1/2 1.000" 1-5/16-12
FJX-16-20 1.000 3.699 1.970 1-11/16 2.000 1.000" 1-5/8-12
FJX-20-16 1.250 N/A N/A N/A N/A 1-1/4" 1-5/16-12
FJX-20-20 1.250 3.889 1.889 1-3/4 2.000 1-1/4" 1-5/8-12
