FJX-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female JIC | Swivel | for 2" Hose ID

Name: FJX-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female JIC | Swivel | for 2" Hose ID
Brand: Kurt Hydraulics
SKU: FJX-32-32-JJ Kurt
Price: 110.11 USD
Availability: InStock

Save $73.41

$183.52

$183.52 - $183.52

$183.52

$110.11

$110.11 - $110.11

$110.11

by Kurt Hydraulics
FJX-JJ - 37 deg. JIC Female Swivel - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: FJX-32-32-JJ Kurt
Series:	JJ Series
Shape (Orientation):	Straight
Ends Configuration:	2in Hose Barb, 2in Female JIC
Special Properties:	Swivel

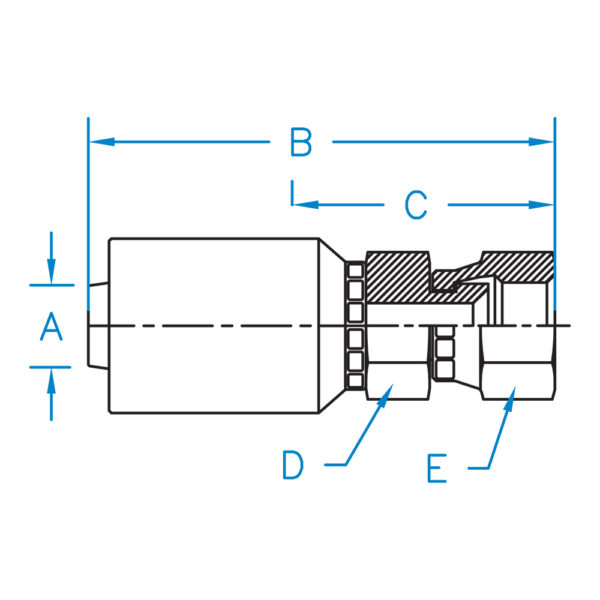

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FJX-20-20-JJ	1.250	4.915	2.315	2.000	2.000	1-1/4"	1-5/8 - 12
FJX-24-24-JJ	1.500	5.380	2.170	2-1/4	2.000	1-1/2"	1-7/8 - 12
FJX-32-32-JJ	2.000	6.920	2.700	2-7/8	2-5/8	2.000"	2-1/2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
