FJX45-08-12-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 3/4" Female 37° JIC Swivel | 45° Elbow | Carbon Steel

Name: FJX45-08-12-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 3/4" Female 37° JIC Swivel | 45° Elbow | Carbon Steel
Brand: Kurt Hydraulics
SKU: FJX45-08-12-K2 Kurt
Price: 23.97 USD
Availability: InStock

Save $15.98

$39.95

$39.95 - $39.95

$39.95

$23.97

$23.97 - $23.97

$23.97

Kurt Hydraulics
37° JIC Female 45° Swivel

Specifications for Variant SKU: FJX45-08-12-K2 Kurt
Series:	K2 Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Hose Barb, 3/4in Female JIC
Material(s):	Carbon Steel
Special Properties:	Swivel

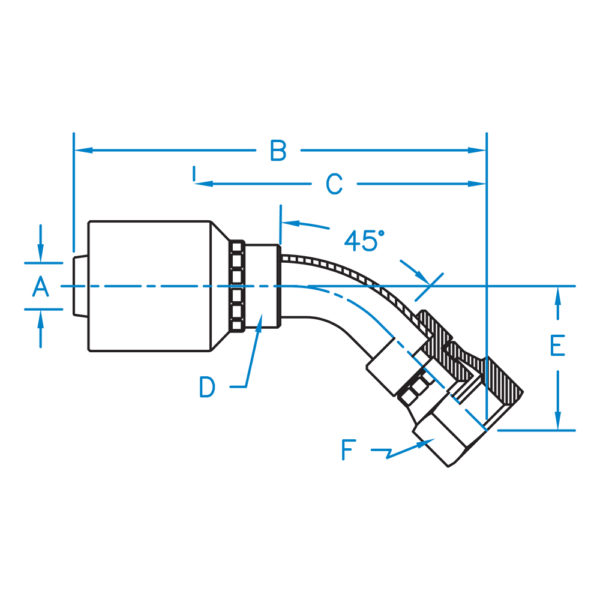

Part Number	Hose I.D. (in.)	B	C	D	E	F	Thread
FJX45-04-04-K2	1/4"	2.86"	1.80"	9/16"	0.39"	9/16"	7/16"-20
FJX45-04-05-K2	1/4"	2.89"	1.83"	5/8"	0.39"	5/8"	1/2"-20
FJX45-04-06-K2	1/4"	2.93"	1.87"	11/16"	0.43"	11/16"	9/16"-18
FJX45-06-04-K2	3/8"	3.19"	1.82"	11/16"	0.39"	9/16"	7/16"-20
FJX45-06-05-K2	3/8"	3.22"	1.85"	11/16"	0.39"	5/8"	1/2"-20
FJX45-06-06-K2	3/8"	3.26"	1.89"	11/16"	0.43"	11/16"	9/16"-18
FJX45-06-08-K2	3/8"	3.60"	2.23"	7/8"	0.59"	7/8"	3/4"-16
FJX45-08-06-K2	1/2"	3.28"	1.94"	3/4"	0.43"	11/16"	9/16"-18
FJX45-08-08-K2	1/2"	2.99"	2.31"	7/8"	0.59"	7/8"	3/4"-16
FJX45-08-10-K2	1/2"	3.30"	1.96"	1"	0.63"	1"	7/8"-14
FJX45-08-12-K2	1/2"	3.56"	2.22"	1"	0.83"	1-1/4"	1-1/16"-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
