FJX90-06-05-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 3/8" Hose Barb x 5/16" Female 37° JIC Swivel | 90° Elbow | Carbon Steel

FJX90-06-05-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 3/8" Hose Barb x 5/16" Female 37° JIC Swivel | 90° Elbow | Carbon Steel

Save $7.36 Save $7.36
$18.40
$18.40 - $18.40
$18.40
$11.04
$11.04 - $11.04
$11.04

Kurt Hydraulics
37° JIC Female 90° Bent Tube Swivel
Specifications for Variant SKU: FJX90-06-05-K2 Kurt
Series: K2 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb, 5/16in Female JIC
Material(s): Carbon Steel
Special Properties: Swivel

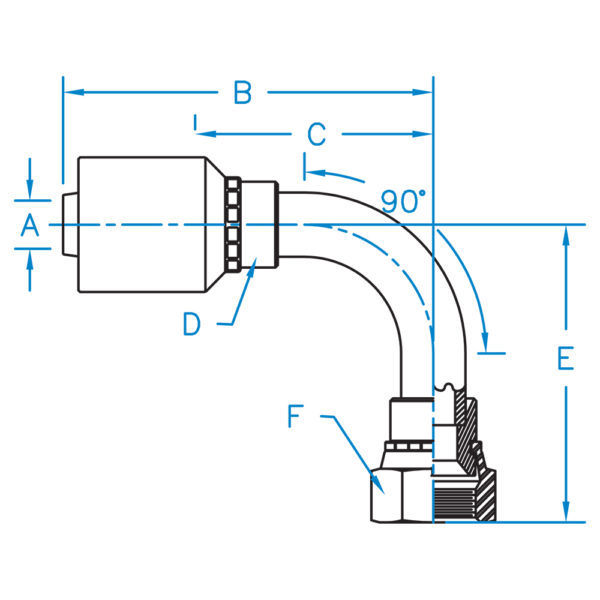

Part Number Hose I.D. (in.) B C D E F Thread
FJX90-04-04-K2 1/4" 2.70" 1.64" 9/16" 0.83" 9/16" 7/16" – 20
FJX90-04-05-K2 1/4" 2.79" 1.73" 5/8" 0.83" 5/8" 1/2" – 20
FJX90-04-06-K2 1/4" 2.67" 1.61" 11/16" 0.85" 11/16" 9/16" – 18
FJX90-06-04-K2 3/8" 3.03" 1.66" 9/16" 0.83" 9/16" 7/16" – 20
FJX90-06-05-K2 3/8" 3.12" 1.75" 11/16" 0.83" 5/8" 1/2" – 20
FJX90-06-06-K2 3/8" 3.03" 1.80" 11/16" 0.91" 11/16" 9/16" – 18
FJX90-06-08-K2 3/8" 3.42" 2.04" 7/8" 1.12" 7/8" 3/4" – 16
FJX90-08-06-K2 1/2" 3.19" 1.85" 7/8" 0.91" 11/16" 9/16" – 18
FJX90-08-08-K2 1/2" 3.49" 2.15" 1" 1.13" 7/8" 3/4" – 16
FJX90-08-10-K2 1/2" 2.95" 1.61" 1-1/4" 1.26" 1" 7/8" – 14
FJX90-08-12-K2 1/2" 3.50" 2.16" 1-1/2" 1.83" 1-1/4" 1-1/16" – 12
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
