FJX90-20-24-W by Kurt Hydraulics | Jump Size | Female 37 Degree JIC | 90 Degree | Swivel | for 1-1/4" Hose ID

FJX90-20-24-W by Kurt Hydraulics | Jump Size | Female 37 Degree JIC | 90 Degree | Swivel | for 1-1/4" Hose ID

Save $60.37 Save $60.37
$150.92
$150.92 - $150.92
$150.92
$90.55
$90.55 - $90.55
$90.55
by Kurt Hydraulics
FJX90-W - 37 deg. JIC Female 90 deg. Bent Tube Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FJX90-20-24-W Kurt
Series: W Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Hose Barb, 1-1/2in Female JIC
Special Properties: Swivel, Jump Size

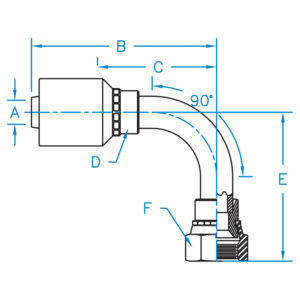

Part Number A B C D E Hose ID
(In)		 Thread
FJX90-06-04-W 0.375 3.025 1.655 9/16 0.830 3/8" 7/16-20
FJX90-06-06-W 0.375 3.03 1.8 11/16 0.91 3/8" 9/16-18
FJX90M-06-06-W 0.375 3.174 1.804 11/16 1.500 3/8" 9/16-18
FJX90-06-08-W 0.375 2.640 1.300 7/8 1.380 3/8" 3/4-16
FJX90-08-06-W 0.500 2.640 1.300 7/8 2.430 1/2" 9/16-18
FJX90-08-08-W 0.500 2.770 1.430 1.000 1.630 1/2" 3/4-16
FJX90M-08-08-W 0.500 3.486 2.145 7/8 1.614 1/2" 3/4-16
FJX90-08-10-W 0.500 4.820 3.030 1-1/4 2.650 1/2" 7/8-14
FJX90-08-12-W 0.500 5.220 3.110 1-1/2 2.770 1/2" 1-1/16-12
FJX90-10-10-W 0.625 3.82 1.72 2.000 1.23 5/8" 7/8-14
FJX90-10-12-W 0.625 6.230 3.780 2.000 3.330 5/8" 1-1/16-12
FJX90-12-12-W 0.750 6.230 2.725 2-1/4 2.574 3/4" 1-1/16-12
FJX90-12-16-W 0.750 6.740 4.140 2-1/4 3.910 3/4" 1-5/16-12
FJX90-16-16-W 1.000 8.260 3.050 2-7/8 2.800 1.000" 1-5/16-12
FJX90-16-20-W 1.000 5.220 3.050 2.000 2.800 1.000" 1-5/18-12
FJX90-20-20-W 1.250 6.230 3.902 2.000 3.240 1-1/4" 1-5/8-12
FJX90-20-24-W 1.250 6.230 3.780 2-1/4 3.360 1-1/4" 1-7/8-12
FJX90-24-24-W 1.500 6.740 4.140 2-1/4 3.940 1-1/2" 1-7/8-12
FJX90-32-32-W 2.000 8.31 5.010 2-7/8 6.16 2.000" 2-1/2-12


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
