FJX90-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female JIC | 90° Elbow | Swivel | for 1-1/2" Hose ID

Save $15.63

$140.66

$140.66 - $140.66

$140.66

$125.03

$125.03 - $125.03

$125.03

by Kurt Hydraulics
FJX90-JJ - 37 deg. JIC Female 90 deg. Bent Tube Swivel - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: FJX90-24-24-JJ Kurt
Series:	FJX90 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Female JIC
Special Properties:	Swivel

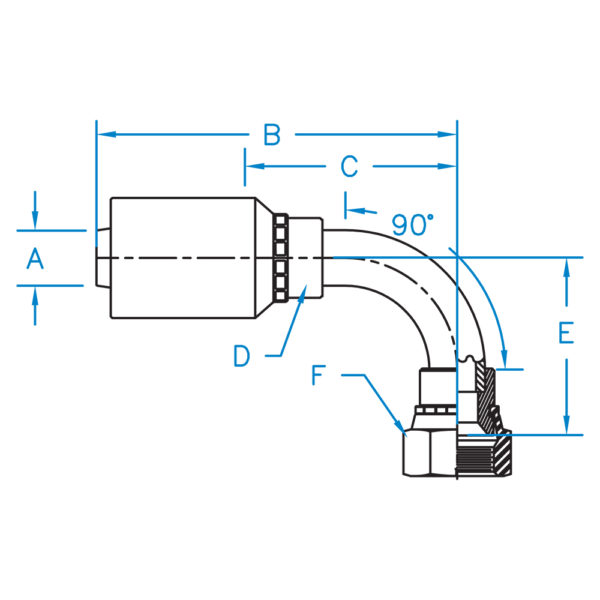

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FJX90-20-20-JJ	1.250	6.570	3.940	1-3/4R	3.078	2.000	1-1/4"	1-5/8 - 12
FJX90-24-24-JJ	1.500	6.333	3.623	2-1/8R	3.790	2-1/4	1-1/2"	1-7/8 - 12
FJX90-32-32-JJ	2.000	8.860	5.090	2-3/4R	4.800	2-7/8	2.000"	2-1/2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
