FJX90B-0810-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" Female 37° JIC Swivel Block Style| 90° Elbow | Carbon Steel

FJX90B-0810-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" Female 37° JIC Swivel Block Style| 90° Elbow | Carbon Steel

Save $59.41 Save $59.41
$148.52
$148.52 - $148.52
$148.52
$89.11
$89.11 - $89.11
$89.11

Kurt Hydraulics
FJX90B - 37° JIC Female 90° Swivel Block Style
Specifications for Variant SKU: FJX90B-0810-K2 Kurt
Series: K2 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Hose Barb x 5/8in Female JIC
Material(s): Carbon Steel
Special Properties: Swivel

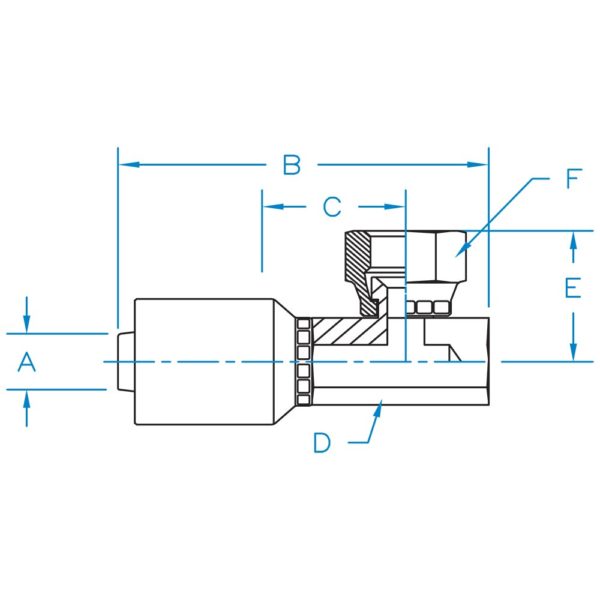

Part Number Hose I.D. (in.) B C D E F Thread
FJX90B-0606-K2 3/8" 3.01" 1.11" 13/16" 1.16" 11/16" 9/16 – 18
FJX90B-0608-K2 3/8" 3.01" 1.11" 13/16" 1.17" 7/8" 3/4 – 16
FJX90B-0808-K2 1/2" 2.64" 0.80" 15/16" 1.36" 7/8" 3/4 – 16
FJX90B-0810-K2 1/2" 2.64" 0.80" 15/16" 1.42" 1" 7/8 – 14
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
