FJX90L-16-16-W by Kurt Hydraulics | Female 37 Degree JIC | 90 Degree | Long Drop Bent Tube | Swivel | for 1" Hose ID

Save $27.57

$68.93

$68.93 - $68.93

$68.93

$41.36

$41.36 - $41.36

$41.36

by Kurt Hydraulics
FJX90L-W - 37 deg. JIC Female 90 deg. Long Drop Bent Tube Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX90L-16-16-W Kurt
Series:	W Series
Shape (Orientation):	90 Degree
Ends Configuration:	1in Hose Barb, 1in Female JIC
Special Properties:	Swivel

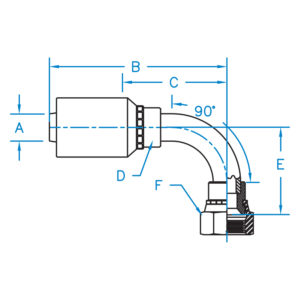

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FJX90L-06-06-W	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
FJX90L-06-08-W	0.375	3.466	2.096	3/4	2.769	7/8	3/8"	3/4-16
FJX90L-08-08-W	0.500	3.46	2.156	7/8	2.57	7/8	1/2"	3/4-16
FJX90L-08-10-W	0.500	4.82	3.030	7/8	2.77	1	1/2"	7/8-14
FJX90L-10-10-W	0.625	4.28	2.18	1	1	1-1-1/4	5/8"	7/8-14
FJX90L-12-12-W	0.750	4.593	2.714	1	3.779	1-1/4	3/4"	1-1/16-12
FJX90L-16-16-W	1.000	5.218	3.105	1-5/16	4.5	1-1/2	1"	1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
