FJX90M-08-10-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" Female 37° JIC Swivel | Medium Drop | 90° Elbow | Carbon Steel

Save $23.55

$58.87

$58.87 - $58.87

$58.87

$35.32

$35.32 - $35.32

$35.32

Kurt Hydraulics
37° JIC Female 90° Medium Drop Bent Tube Female Swivel

Specifications for Variant SKU: FJX90M-08-10-K2 Kurt
Series:	K2 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Hose Barb, 5/8in Female JIC
Material(s):	Carbon Steel
Special Properties:	Medium Drop

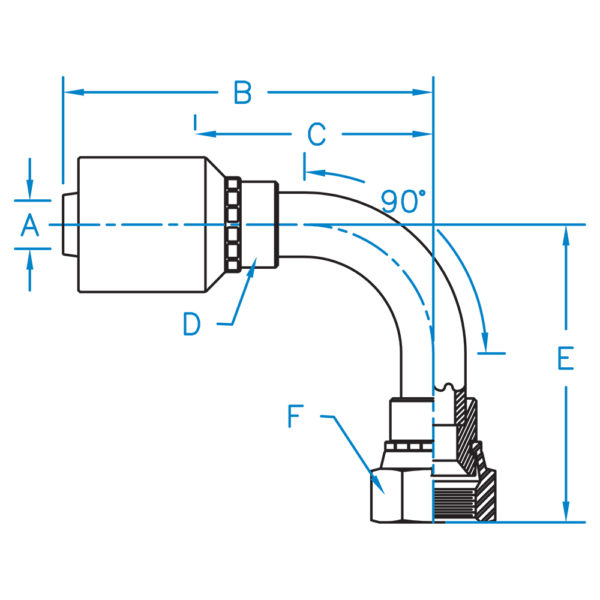

Part Number	Hose I.D. (in.)	B	C	D	E	F	Thread
FJX90M-04-04-K2	1/4"	2.70"	1.64"	9/16"	1.26"	9/16"	7/16" – 20
FJX90M-04-06-K2	1/4"	2.84"	1.78"	5/8"	1.50"	11/16"	9/16" – 18
FJX90M-06-06-K2	3/8"	3.17"	1.80"	11/16"	1.50"	11/16"	9/16" – 18
FJX90M-08-08-K2	1/2"	3.49"	2.15"	7/8"	1.61"	7/8"	3/4" – 16
FJX90M-08-10-K2	1/2"	2.95"	1.61"	13/16"	1.85"	1"	7/8" – 14
