FJX90M-10-10 by Kurt Hydraulics | Female JIC | 90° Medium Drop Elbow | Swivel | for 5/8" Hose ID

Name: FJX90M-10-10 by Kurt Hydraulics | Female JIC | 90° Medium Drop Elbow | Swivel | for 5/8" Hose ID
Brand: Kurt Hydraulics
SKU: FJX90M-10-10 Kurt
Price: 15.84 USD
Availability: InStock

Save $10.56

$26.40

$26.40 - $26.40

$26.40

$15.84

$15.84 - $15.84

$15.84

by Kurt Hydraulics
FJX90M - 37 deg. JIC Female 90 deg. Bent Tube Swivel Medium Drop

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX90M-10-10 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Hose Barb, 5/8in Female JIC
Special Properties:	Swivel

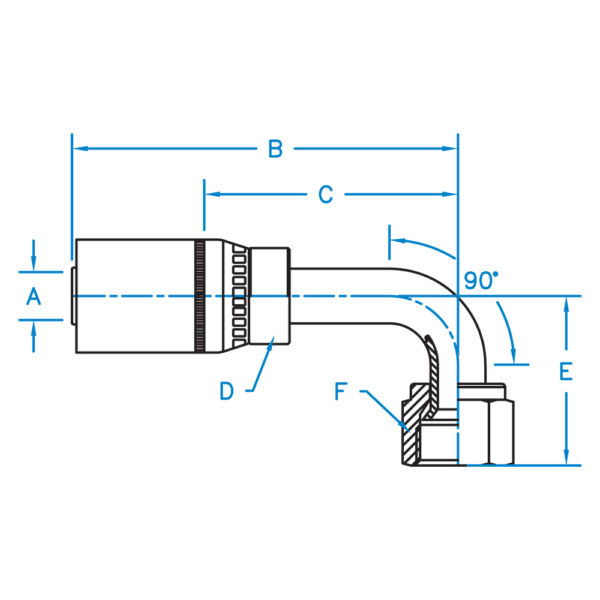

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FJX90M-04-04	0.25	2.975	1.72	5/8	1.26	9/16	1/4"	7/16-20
FJX90M-06-06	0.375	3.380	1.880	3/4 R	1.500	11/16	3/8"	9/16-18
FJX90M-08-08	0.500	3.750	2.250	7/8	1.614	7/8	1/2"	3/4-16
FJX90M-10-10	0.625	3.429	1.929	1-1/8 R	1.850	1.000	5/8"	7/8-14
FJX90M-12-12	0.750	3.889	2.296	1-1/8	2.283	1-1/4	3/4"	1-1/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
