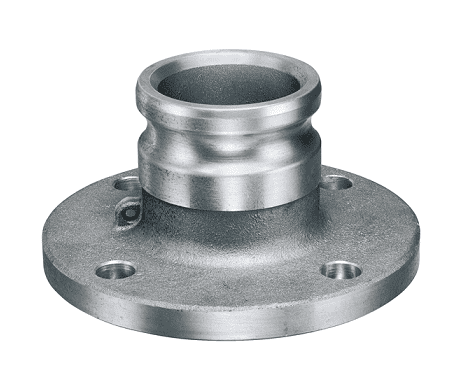

FL-AL-A200 by Kuriyama | Quick-Acting Special Application Coupling | Part A | 2" Adapter x 150# ASA Flange | Aluminum

FL-AL-A200 by Kuriyama | Quick-Acting Special Application Coupling | Part A | 2" Adapter x 150# ASA Flange | Aluminum

Save $7.09 Save $7.09
$37.26
$37.26 - $37.26
$37.26
$30.17
$30.17 - $30.17
$30.17

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part A - Adapter x 150# ASA Flange - Aluminum

Specifications for Variant SKU: FL-AL-A200 Kuriyama
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2in Male Cam & Groove, 2in 150# Flange
Material(s): Aluminum
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Adapter 150# ASA Flange Weight (Lbs.)
FL-AL-A200 2" 2" 1.98 lbs
FL-AL-A300 3" 3" 3.86 lbs
FL-AL-A400 4" 4" 5.86 lbs
FL-AL-A600 6" 6" 9.92 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
