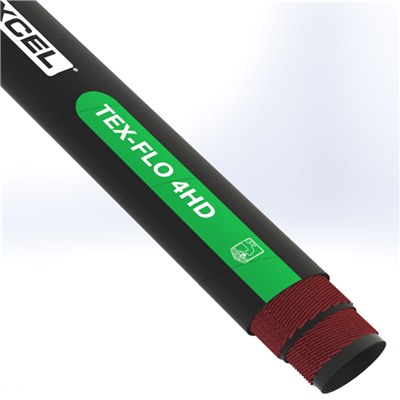

FLO-4HD-5.0 by Texcel | TEX-FLO 4HD Series | Heavy-Duty 4-Ply Water Discharge Hose | 5" Hose ID | 200 PSI | Black

FLO-4HD-5.0 by Texcel | TEX-FLO 4HD Series | Heavy-Duty 4-Ply Water Discharge Hose | 5" Hose ID | 200 PSI | Black

$28.38 - $2,365.50
$28.38
$25.23
$25.23 - $2,102.67
$25.23

Texcel
TEX-FLO 4HD Series | Heavy-Duty 4-Ply Water Discharge Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FLO-4HD-5.0-100- Texcel | 100 |
Series: TEX-FLO 4HD Series
Hose Color(s): Black
Internal Diameter: 5in
Outer Diameter: 5.44in
Tubing Construction: SBR/EPDM Blend
Cover Construction: EPDM/SBR Blend
Technical Data:
Description: Soft-wall design gives similar performance to a lay-flat hose, but with increased abrasion resistance and tensile strength. FLO-HD is made of a premium-quality SBR/EPDM blend for maximum weather resistance and life in abusive service. Cover & Tube: Black, SBR/EPDM blend
Reinforcement: High tensile tire cord plies Safety Factor: 3:1
Temperature: -40°F to +180°F Branding: TEXCEL® TEX-FLO 4HD - HEAVY DUTY WATER DISCHARGE HOSE 4PLY XXX PSI WP
Part Number Hose ID Hose OD Fabric Plies Working Pressure (psi) Lbs./ft
FLO-4HD-1.5 1-1/2" 1-58/64" 4 250 psi 0.56 lbs
FLO-4HD-2.0 2" 2-26/64" 4 250 psi 0.73 lbs
FLO-4HD-2.5 2-1/2" 2-58/64" 4 250 psi 0.88 lbs
FLO-4HD-3.0 3" 3-26/64" 4 250 psi 1.04 lbs
FLO-4HD-4.0 4" 4-27/64" 4 200 psi 1.41 lbs
FLO-4HD-4.5 4-1/2" 4-59/64" 4 200 psi 1.58 lbs
FLO-4HD-5.0 5" 5-28/64" 4 200 psi 1.89 lbs
FLO-4HD-6.0 6" 6-29/64" 4 200 psi 2.38 lbs
FLO-4HD-8.0 8" 8-30/64" 4 200 psi 3.49 lbs
FLO-4HD-10.0 10" 10-34/64" 4 150 psi 4.34 lbs
