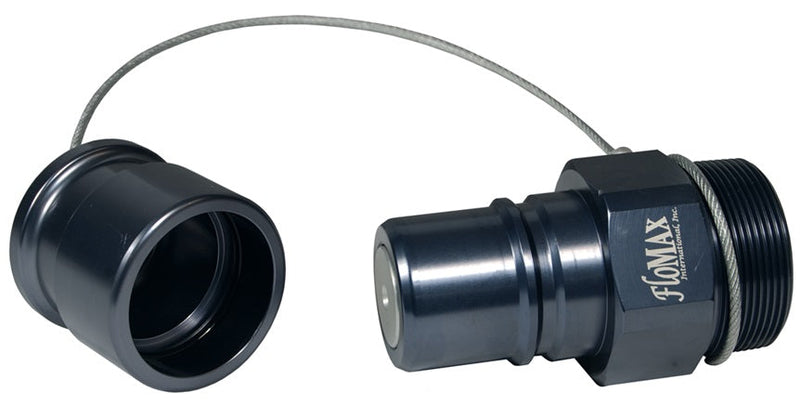

FRA-C by Dixon Valve | FloMAX Diesel Fueling System | One-Piece Diesel Fuel Receiver | with Cap | 2" Male NPT | Anodized Aluminum

Save $34.57

$311.13

$311.13 - $311.13

$311.13

$276.56

$276.56 - $276.56

$276.56

Dixon Valve
FloMAX Diesel Fueling System | One-Piece Diesel Fuel Receiver

Designed for on-site refueling of construction, mining, forestry, and agricultural equipment.

Quantity

Specifications for Variant SKU: FRA-C Dixon
Brand:	FloMAX
Series:	FRA Series
Shape (Orientation):	Straight
Ends Configuration:	2in Male NPT
Material(s):	Anodized Aluminum

Compatibility & Interchange:
Interchanges with Caterpillar® and Wiggins systems.
Features:
2" Male NPT.

Part Number	Description	Material	Cross Over Part Numbers
Part Number	Description	Material	Caterpillar®	Wiggins	FastFill	Shaw
FRS	One-Piece Diesel Fuel Receiver without Cap	Nickel-Plated Steel	2G9000	ZN2A	R150S	-
FRS-C	One-Piece Diesel Fuel Receiver with Cap (Cap has set screw attached vinyl coated cable lanyard.)	Nickel-Plated Steel	-	ZNC2A	R150SC	-
FRA	One-Piece Diesel Fuel Receiver without Cap	Anodized Aluminum	-	ZN2A	R150AL	-
FRA-C	One-Piece Diesel Fuel Receiver with Cap (Cap has set screw attached vinyl coated cable lanyard.)	Anodized Aluminum	-	ZNC2A	R150ALC	-
FR-CAP	Cap for One-Piece & Two-Piece Diesel Fuel Receivers (O-ring sealed aluminum cap with set screw attached vinyl coated cable lanyard included.)	Anodized Aluminum	0D0630	ZC20P	C150	388-4327

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
