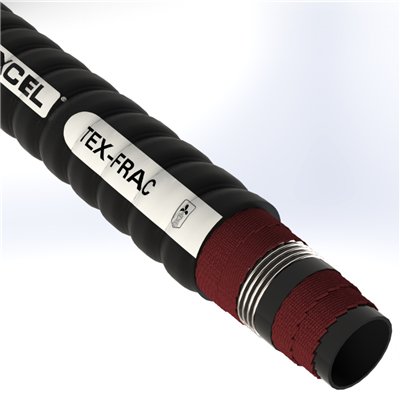

FRAC-8.0 by Texcel | TEX-FRAC Series | Frac Tank Hose | 8" Hose ID | 150 PSI | 25 in/Hg Vacuum Rated | Black

FRAC-8.0 by Texcel | TEX-FRAC Series | Frac Tank Hose | 8" Hose ID | 150 PSI | 25 in/Hg Vacuum Rated | Black

$80.04 - $6,670.50
$80.04
$71.15
$71.15 - $5,929.33
$71.15

Texcel
TEX-FRAC Series | Frac Tank Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FRAC-8.0-100N Texcel | 100 |
Series: TEX-FRAC Series
Hose Color(s): Black
Internal Diameter: 8in
Outer Diameter: 9in
Tubing Construction: Elastomer (Proprietary)
Cover Construction: SBR/Nitrile Blend
Technical Data:
Description: A heavy-duty frac tank hose ideal for handling salt and fresh water, tank bottoms, crude oil, drilling muds and mild solutions of hydrochloric acids. Tube: Black, specially compounded elastomer; low oil swell
Cover: Black, SBR/Nitrile blend compounded for oil and ozone resistance (corrugated) Reinforcement: High tensile tire cord plies; single helix wire
Safety Factor: 4:1 Temperature: -40°F to +190°F
Branding: TEXCEL® TEX-FRAC - FRAC TANK HOSE NOT FOR REFINED FUELS 150 PSI W.P. Safety Note: Not recommended for refined petroleum products
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
FRAC-8.0 8" 9" 150 psi 25 in./HG 18" 8.17 lbs
