FSX-12-12 by Kurt Hydraulics | Female SAE 45 Degree | Swivel | for 3/4" Hose ID

Name: FSX-12-12 by Kurt Hydraulics | Female SAE 45 Degree | Swivel | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: FSX-12-12 Kurt
Price: 10.31 USD
Availability: InStock

Save $6.87

$17.18

$17.18 - $17.18

$17.18

$10.31

$10.31 - $10.31

$10.31

by Kurt Hydraulics
FSX - 45 deg. SAE Female Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FSX-12-12 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Female SAE 45 Flare
Special Properties:	Swivel

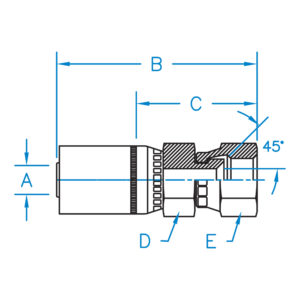

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FSX-04-06	0.250	2.595	1.340	11/16	3/4	1/4"	5/8-18
FSX-05-06	.3125	N/A	N/A	N/A	N/A	5/16"	5/8-18
FSX-06-06	0.375	2.856	1.356	11/16	3/4	3/8"	5/8-18
FSX-07-06-R5	N/A	N/A	N/A	N/A	N/A	N/A	N/A
FSX-12-12	0.750	3.251	1.658	1-1/8	1-1/4	3/4"	1-1/16-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
