FSX45-06-05 by Kurt Hydraulics | Jump Size | Female SAE 45° | 45° Elbow | Swivel | for 3/8" Hose ID

Save $10.29

$25.72

$25.72 - $25.72

$25.72

$15.43

$15.43 - $15.43

$15.43

by Kurt Hydraulics
FSX45 - 45 deg. SAE Female 45 deg. Bent Tube Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FSX45-06-05 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Hose Barb, 5/16in Female SAE 45 Flare
Special Properties:	Swivel, Jump Size

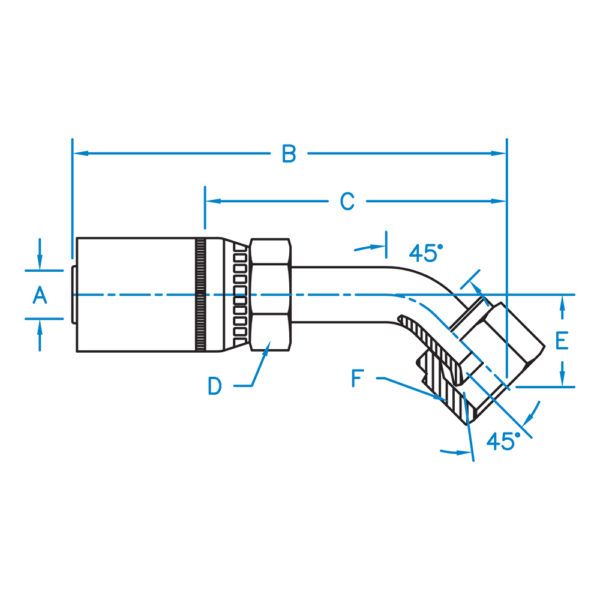

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FSX45-04-04	0.250	3.135	1.880	5/8	0.394	9/16	1/4"	7/16-20
FSX45-04-05	0.250	3.165	1.91	5/8	0394	5/8	1/4"	1/2-20
FSX45-06-05	0.375	3.426	1.926	11/16	.394	5/8	3/8"	1/2-20
FSX45-06-06	0.375	2.835	1.970	11/16	0.430	3/4	3/8"	5/8-18
FSX45-08-08	0.500	3.910	2.410	7/8	0.590	15/16	1/2"	3/4-16
FSX45-08-10	0.500	3.560	2.060	7/8	0.630	1-1/16	1/2"	7/8-14
FSX45-10-12	0.625	N/A	N/A	1-1/8	N/A	1-1/4	5/8"	1-1/16-14
FSX45-12-12	0.750	4.329	2.449	1-1/8	1.120	1-1/4	3/4"	1-1/16-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
