FSX90-06-04-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 1/4" Female SAE 45° Flare Swivel | 90° Elbow | Carbon Steel

Name: FSX90-06-04-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 1/4" Female SAE 45° Flare Swivel | 90° Elbow | Carbon Steel
Brand: Kurt Hydraulics
SKU: FSX90-06-04-K2 Kurt
Price: 36.23 USD
Availability: InStock

Save $24.15

$60.38

$60.38 - $60.38

$60.38

$36.23

$36.23 - $36.23

$36.23

Kurt Hydraulics
FSX90 - 45° SAE Female 90° Bent Tube Swivel

Specifications for Variant SKU: FSX90-06-04-K2 Kurt
Series:	K2 Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Hose Barb x 1/4in Female SAE 45 Flare
Material(s):	Carbon Steel
Special Properties:	Swivel

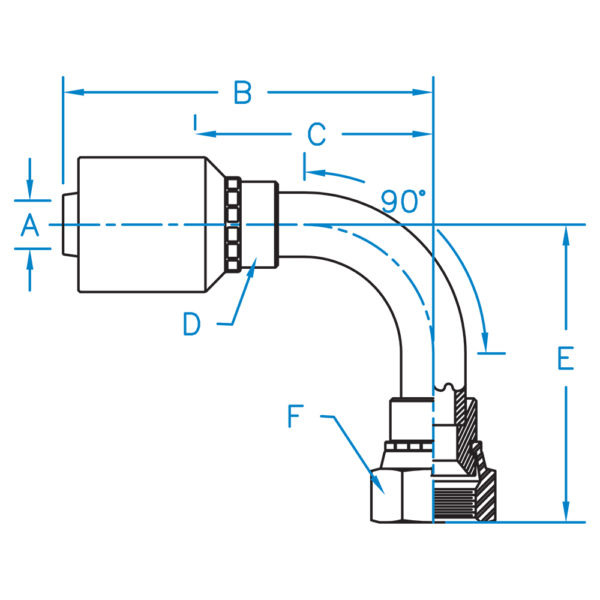

Part Number	Hose I.D. (in.)	B	C	D	E	F	Thread
FSX90-04-04-K2	1/4"	2.70"	1.64"	5/8"	0.83"	9/16"	7/16 – 20
FSX90-04-05-K2	1/4"	2.79"	1.73"	5/8"	0.87"	5/8"	1/2 – 20
FSX90-06-04-K2	3/8"	3.03"	1.66"	11/16"	0.83"	9/16"	7/16 – 20
FSX90-06-05-K2	3/8"	3.12"	1.75"	11/16"	0.87"	5/8"	1/2 – 20
FSX90-06-06-K2	3/8"	3.17"	1.80"	11/16"	0.91"	3/4"	5/8 – 18
FSX90-06-08-K2	3/8"	3.47"	2.10"	3/4"	1.13"	15/16"	3/4 – 16
FSX90-08-08-K2	1/2"	3.49"	2.15"	7/8"	1.13"	15/16"	3/4 – 16
FSX90-08-10-K2	1/2"	2.95"	1.61"	7/8"	1.26"	1-1/16"	7/8 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
