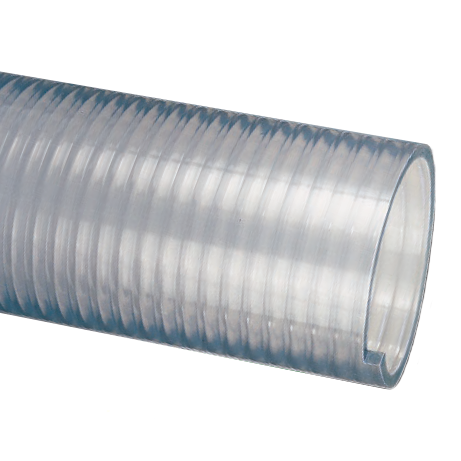

FT075X100 Kuriyama Tigerflex FT Series Heavy Duty Food Grade PVC Suction Hose - 3/4" - 100ft

FT075X100 Tigerflex by Kuriyama | FT Series | Heavy Duty Food Grade Suction Hose | 3/4" ID | PVC | 100ft Length

Save $105.36

$368.76

$368.76 - $368.76

$368.76

$263.40

$263.40 - $263.40

$263.40

Kuriyama Tigerflexft™ Series Heavy Duty Food Grade PVC Suction Hose

Package Quantity: 100 FT

Specifications for Variant SKU: FT075X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	FT Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.75in
Outer Diameter:	0.94in
Tubing Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Food grade liquids such as potable water, beer,wine and juice Ice transfer, Food grade material handling, Milk and dairy product transfer, Water suction - standard duty Poultry processing	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix.	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) for use in meat and poultry plants. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
FT075X100	3/4"	19.0mm	0.94"	24.0mm	115 PSI	75 PSI	Full	28in. Hg	3"	100ft	0.17 lbs
FT100X100	1"	25.5mm	1.28"	32.5mm	100 PSI	70 PSI	Full	28in. Hg	3"	100ft	0.24 lbs
FT125X100	1-1/4"	32.0mm	1.56"	39.6mm	90 PSI	65 PSI	Full	28 in. Hg	4"	100ft	0.44 lbs
FT150X100	1-1/2"	38.1mm	1.80"	46.5mm	85 PSI	60 PSI	Full	28in. Hg	6"	100ft	0.50 lbs
FT200X100	2"	50.8mm	2.36"	60.0mm	85 PSI	60 PSI	Full	26in. Hg	8"	100ft	0.71 lbs
FT250X100	2-1/2"	63.5mm	2.88"	73.2mm	65 PSI	45 PSI	Full	26in. Hg	10"	100ft	0.94 lbs
FT300X100	3"	76.2mm	3.42"	86.9mm	55 PSI	40 PSI	Full	24 in. Hg	11"	100ft	1.14 lbs
FT400X100	4"	101.6mm	4.51"	114.6mm	50 PSI	35 PSI	Full	24in. Hg	18"	100ft	1.91 lbs
FT400X60	4"	101.6mm	4.51"	114.6mm	50 PSI	35 PSI	Full	24in. Hg	18"	60ft	1.91 lbs
FT500X100	5"	127.0mm	5.51"	140.0mm	40 PSI	25 PSI	28in. Hg	23in. Hg	28"	100ft	2.41 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
