FW-08-08-W by Kurt Hydraulics | Female Weld Fitting | Rigid | for 1/2" Hose ID

Name: FW-08-08-W by Kurt Hydraulics | Female Weld Fitting | Rigid | for 1/2" Hose ID
Brand: Kurt Hydraulics
SKU: FW-08-08-W Kurt
Price: 4.88 USD
Availability: InStock

Save $3.25

$8.13

$8.13 - $8.13

$8.13

$4.88

$4.88 - $4.88

$4.88

by Kurt Hydraulics
FW-W - Female Weld Fitting Rigid

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FW-08-08-W Kurt
Series:	W Series
Shape (Orientation):	Straight
Special Properties:	Rigid

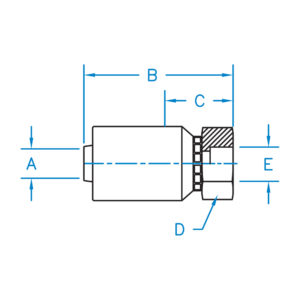

Part Number	A	B	C	D	E	Hose ID (In)
FW-06-06-W	0.375	1.930	0.560	11/16 R	0.375	3/8"
FW-06-08-W	0.375	1.930	0.560	3/4 R	0.500	3/8"
FW-08-08-W	0.500	1.950	0.610	7/8 R	0.500	1/2"
FW-12-12-W	0.750	2.500	0.710	1.000	3/4	3/4"
FW-16-16-W	1.000	2.915	0.790	1-5/16 R	1.000	1.000"

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
