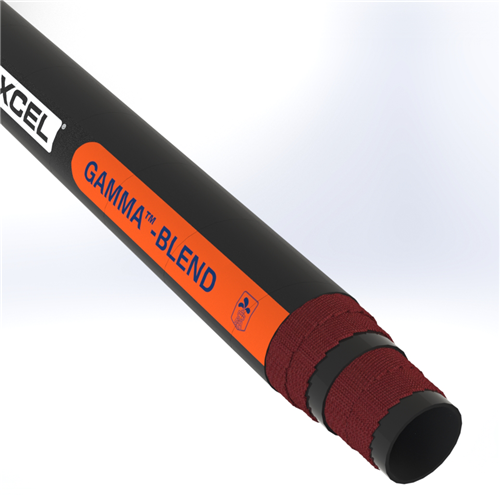

GBF40S1-4.0 by Texcel | GAMMA™-BLEND Series | Blender/Fracturing Hose | 4" Hose ID | 400 PSI | Black

Original price $37.82 - Original price $6,303.00
Original price $37.82
$33.62
$33.62 - $5,602.67
Current price $33.62

GAMMA™ by Texcel
BLEND Series | 400psi Blender/Fracturing Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Specifications for Variant SKU: GBF40S1-4.0-200N Texcel | 200 |
Brand: GAMMA™
Series: GAMMA™-BLEND Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.77in
Tubing Construction: Nitrile
Cover Construction: SBR/Nitrile Blend
Technical Data:
Description: A rugged hose designed for blender/fracturing operations in oilfield and gas exploration applications. The abrasion-resistant cover is constructed to withstand extended exposure to harsh, abrasive conditions typically seen in oilfield fracturing operations. Designed for the transfer of 98% water and sand mixtures, oil slurries and crude oil. Tube: Black, fuel and oil-resistant, NBR compound
Cover: Black, abrasion-resistant, SBR/Nitrile blend compound* Reinforcement: High tensile strength tire cord plies
Safety Factor: 4:1 Temperature: -30°F to +180°F
Branding: TEXCEL® GAMMA™-BLEND - BLENDER / FRACTURING DISCHARGE HOSE 400 PSI W.P.
Part Number Hose ID Hose OD Working Pressure (psi) Lbs./ft
GBF40S1-4.0 4" 4-49/64" 400 psi 3.02 lbs

*Additional UHMW heavy-duty cover application available for special order
