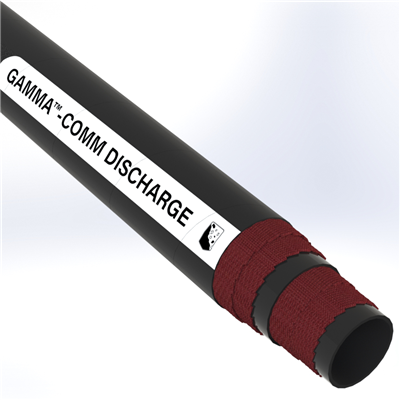

GCOMM-D-B1-5.0 by Texcel | GAMMA™-COMM DISCHARGE Series | Commodity Discharge Hose | 5" Hose ID | 75 PSI | Black

GCOMM-D-B1-5.0 by Texcel | GAMMA™-COMM DISCHARGE Series | Commodity Discharge Hose | 5" Hose ID | 75 PSI | Black

$41.20 - $3,433.50
$41.20
$36.62
$36.62 - $3,052.00
$36.62

GAMMA™ by Texcel
COMM DISCHARGE Series | Commodity Discharge Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GCOMM-D-B1-5.0-100N Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-COMM DISCHARGE Series
Hose Color(s): Black
Internal Diameter: 5in
Outer Diameter: 5.70in
Tubing Construction: Natural Rubber/SBR Blend
Cover Construction: SBR
Technical Data:
Description: Soft-wall hose designed with a high abrasion-resistant tube. Ideal for applications where the discharging of wet or dry abrasive media is required. Tube: Black, abrasion-resistant NR/SBR, static-dissipating materials
Cover: Black, SBR Reinforcement: High tensile tire cord plies
Safety Factor: 4:1 Temperature: -40°F to +180°F
Branding: TEXCEL® GAMMA™-COMM DISCH - BULK COMMODITY DISCHARGE HOSE STATIC CONDUCTIVE TUBE XXX PSI W.P.
Part Number Hose ID Hose OD Tube Gauge Working Pressure (psi) Number of Plies Lbs./Ft.
GCOMM-D-B1-2.0 2" 2-45/64" 3/16" 150 psi 2 1.51 lbs
GCOMM-D-B1-2.5 2-1/2" 3-13/64" 3/16" 125 psi 2 1.82 lbs
GCOMM-D-B1-3.0 3" 3-46/64" 3/16" 125 psi 2 2.20 lbs
GCOMM-D-B1-4.0 4" 4-45/64" 3/16" 100 psi 2 2.79 lbs
GCOMM-D-B1-4.5 4-1/2" 5-13/64" 1/4" 75 psi 2 3.40 lbs
GCOMM-D-B1-5.0 5" 5-45/64" 1/4" 75 psi 2 3.78 lbs
GCOMM-D-B1-6.0 6" 6-45/64" 1/4" 75 psi 2 4.06 lbs
