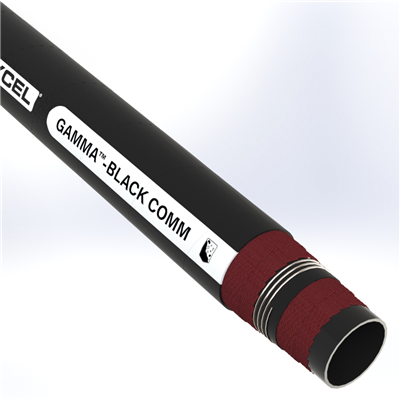

GCOMM-S-B1-12.0 by Texcel | GAMMA™-BLACK COMM Series | Commodity Suction Hose | 12" Hose ID | 50 PSI | 20 in/Hg Vacuum Rated | Black

$162.39 - $3,383.25

$162.39

$144.35

$144.35 - $3,007.33

$144.35

GAMMA™ by Texcel
BLACK COMM Series | Black Commodity Suction Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: GCOMM-S-B1-12.0-25N Texcel \| 25 \|
Brand:	GAMMA™
Series:	GAMMA™-BLACK COMM Series
Hose Color(s):	Black
Internal Diameter:	12in
Outer Diameter:	13.23in
Tubing Construction:	Natural Rubber/SBR Blend
Cover Construction:	SBR

Technical Data:
Description:	A hose similar to our renowned “TEX-COMMODITY” green suction hose, but with a black cover and tube, made of static-dissipating materials where food and potable water features are not necessary.	Tube:	Black, abrasion-resistant NR/SBR, static-dissipating materials
Cover:	Black, SBR	Reinforcement:	High tensile tire cord plies; dual helix on sizes 2”-4”; single helix on sizes 5”-12”
Safety Factor:	4:1	Temperature:	-20°F to +180°F
Branding:	TEXCEL® GAMMA™-BLACK COMM - BULK COMMODITY SUCTION HOSE STATIC CONDUCTIVE TUBE XXX PSI W.P.	Features:	Size 5"-12" are corrugated for extra flexibility

Part Number	Hose ID	Hose OD	Tube Gauge	Working Pressure (psi)	Vacuum (in./Hg)	Bend Radius	Lbs./Ft.
GCOMM-S-B1-2.0	2"	2-5/64"	3/16"	150 psi	28	5"	1.87 lbs
GCOMM-S-B1-2.5	2-1/2"	3-27/64"	3/16"	125 psi	28	8"	2.26 lbs
GCOMM-S-B1-3.0	3"	3-59/64"	3/16"	125 psi	28	10.5"	2.64 lbs
GCOMM-S-B1-4.0	4"	4-63/64"	3/16"	100 psi	28	12"	4.02 lbs
GCOMM-S-B1-5.0	5"	6-4/64"	1/4"	75 psi	28	13.5"	5.18 lbs
GCOMM-S-B1-6.0	6"	7-49/64"	1/4"	75 psi	25	15"	6.43 lbs
GCOMM-S-B1-8.0	8"	9-6/64"	1/4"	50 psi	20	17"	9.89 lbs
GCOMM-S-B1-10.0	10"	11-16/64"	1/4"	50 psi	20	19"	13.79 lbs
GCOMM-S-B1-12.0	12"	13-15/64"	1/4"	50 psi	20	25"	17.41 lbs
