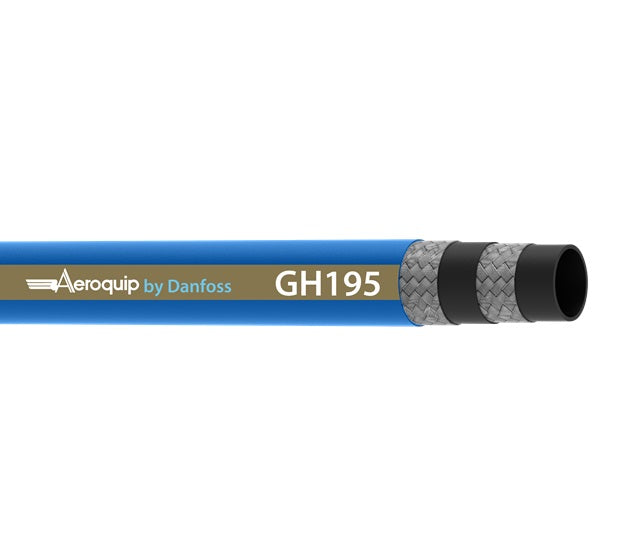

GH195-12 Aeroquip by Danfoss | HI-IMPULSE MatchMate® Blue Premium High Temperature Double Wire Braid Hydraulic Hose | SAE 100R2 | 0.75" ID

GH195-12 Aeroquip by Danfoss | HI-IMPULSE MatchMate® Blue Premium High Temperature Double Wire Braid Hydraulic Hose | SAE 100R2 | 0.75" ID

Minimum Order Quantity: 250 Feet

$28.11 - $28.11
$28.11
$28.11 - $28.11
$28.11

Aeroquip® by Danfoss
GH195 Series | HI-IMPULSE MatchMate® Blue Premium High Temperature Double Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Specifications for Variant SKU: GH195-12RL Danfoss
Brand: Aeroquip, MatchMate
Series: GH195 Series
Hose Color(s): Blue
Dash Size: -12
Internal Diameter: 0.75in
Outer Diameter: 1.16in
Tubing Construction: AQP Elastomer
Cover Construction: AQP Elastomer
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, BV, DNV, EN45545, EN853, ISO 1436-1, SAE 100R2AT Type S, USCG
Compatible with the following Series: 1AA MatchMate Series
Hose Properties:
Application: Petroleum and fire resistant hydraulic fluids, fuel, and lubricating systems. SAE Rating: Meets or exceeds: SAE 100R2 Type S, EN 853 2SN, ISO 1436-1 Type 2SN performance.
Other Ratings: MSHA Accepted, ABS Accepted Tube: CPE
Reinforcement: 2 Steel Braids Cover: Blue CPE
Temperature Range: -40°F to + 300°F
(-40°C to + 150°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
GH195-4 6 6,4mm 0.25" 15,1mm 0.60" 400,0 bar 5800 psi 1600,0 bar 23200 psi 102,0mm 4.02" 0,40 kg/m 0.27 lbs/ft
GH195-6 10 9,5mm 0.38" 19,2mm 0.75" 345,0 bar 5000 psi 1380,0 bar 20000 psi 127,0mm 5.00" 0,58 kg/m 0.39 lbs/ft
GH195-8 12 12,7mm 0.50" 22,1mm 0.87" 293,0 bar 4250 psi 1172,0 bar 17000 psi 178,0mm 7.01" 0,68 kg/m 0.46 lbs/ft
GH195-10 16 15,9mm 0.62" 25,5mm 1.00" 250,0 bar 3650 psi 1000,0 bar 14600 psi 203,0mm 7.99" 0,80 kg/m 0.54 lbs/ft
GH195-12 19 19,0mm 0.75" 29,5mm 1.16" 215,0 bar 3125 psi 860,0 bar 12500 psi 241,0mm 9.49" 1,00 kg/m 0.67 lbs/ft
GH195-16 25 25,4mm 1.00" 37,8mm 1.49" 175,0 bar 2550 psi 700,0 bar 10200 psi 305,0mm 12.01" 1,44 kg/m 0.97 lbs/ft
GH195-20 31 31,8mm 1.25" 48,5mm 1.91" 155,0 bar 2250 psi 620,0 bar 9000 psi 419,0mm 16.50" 2,38 kg/m 1.60 lbs/ft
GH195-24 38 38,1mm 1.50" 55,1mm 2.17" 125,0 bar 1800 psi 500,0 bar 7250 psi 508,0mm 20.00" 2,59 kg/m 1.74 lbs/ft
GH195-32 51 50,8mm 2.00" 67,8mm 2.67" 105,0 bar 1525 psi 420,0 bar 6100 psi 635,0mm 25.00" 3,38 kg/m 2.27 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
