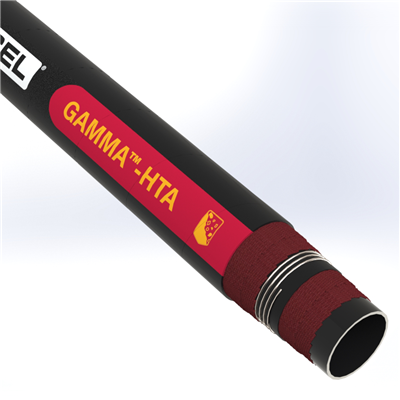

GHTA15S1-4.0 by Texcel | GAMMA™-HTA Series | Hot Tar & Asphalt Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black

GHTA15S1-4.0 by Texcel | GAMMA™-HTA Series | Hot Tar & Asphalt Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black

$64.44 - $10,740.00
$64.44
$57.28
$57.28 - $9,546.67
$57.28

GAMMA™ by Texcel
HTA Series | Hot Tar and Asphalt Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GHTA15S1-4.0-200 Texcel | 200 |
Brand: GAMMA™
Series: GAMMA™-HTA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.80in
Tubing Construction: Acrylic Rubber
Cover Construction: Chloroprene Rubber
Technical Data:
Description: This rugged hose is specifically designed for the transfer of petroleumbased products such as high temperature asphalt, tar, and hot oils. Suitable for suction and discharge service on rail transport cars, tank trucks, bulk stations, storage tanks and disposing units. Tube: Black, special synthetic acrylic rubber, heat and abrasion resistant
Cover: Black, CR anti-static, with a smooth abrasion, weather and heat resistant wrapped cover Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 Temperature: -20°F to +350°F (intermittent)
Branding: TEXCEL® GAMMA™-HTA - HOT TAR & ASPHALT HOSE 150 PSI W.P. Safety Note: Texcel recommends using Dixon Valve and Coupling’s Boss™ 4-Bolt Clamp System for Hot Tar and Asphalt hose. Please consult Dixon’s selection and installation recommendations, including bolt re-tightening procedures, to insure proper hose assembly. Maximum service temp. 350°F, intermittent use only
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./Ft
GHTA15S1-2.0 2" 2-46/64" 150 29 10" 1.80 lbs
GHTA15S1-3.0 3" 3-50/64" 150 29 15" 2.94 lbs
GHTA15S1-4.0 4" 4-51/64" 150 29 20" 3.89 lbs
