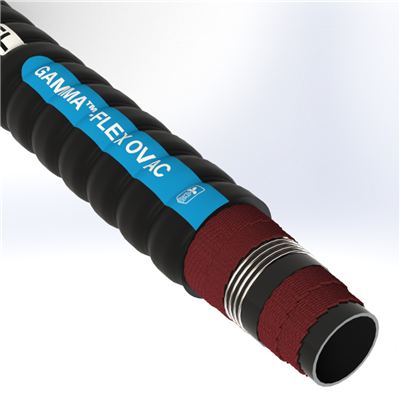

GOV15F1-3.0 by Texcel | GAMMA™-FLEX OVAC Series | Corrugated Oilfield Suction Hose | 3" Hose ID | 150 PSI | Black

GOV15F1-3.0 by Texcel | GAMMA™-FLEX OVAC Series | Corrugated Oilfield Suction Hose | 3" Hose ID | 150 PSI | Black

$16.38 - $1,365.00
$16.38
$14.56
$14.56 - $1,213.33
$14.56

GAMMA™ by Texcel
FLEX OVAC Series | Corrugated Oilfield Suction Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GOV15F1-3.0-100 Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-FLEX OVAC Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.50in
Tubing Construction: Elastomer (Proprietary)
Cover Construction: SBR/Nitrile Blend
Technical Data:
Description: Texcel’s exclusive design for rugged oilfield service where full suction and working pressures are required. Corrugated cover for improved flexibility Tube: Black, specially compounded elastomer; low oil swell
Cover: Black, SBR/Nitrile blend compounded for oil and ozone resistance (corrugated) Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 Temperature: -20°F to +180°F
Branding: TEXCEL® GAMMA™-FLEX OVAC - FLEXIBLE OILFIELD SUCTION HOSE NOT FOR REFINED FUELS 150 PSI W.P. Safety Note: Not recommended for refined petroleum products
Features: Exceptional flexibility
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
GOV15F1-2.0 2" 2-30/64" 150 psi 29 in./HG 2" 1.05 lbs
GOV15F1-3.0 3" 3-32/64" 150 psi 29 in./HG 3" 1.64 lbs
GOV15F1-4.0 4" 4-36/64" 150 psi 29 in./HG 4" 2.58 lbs
GOV15F1-6.0 6" 6-51/64" 150 psi 29 in./HG 8" 4.75 lbs
