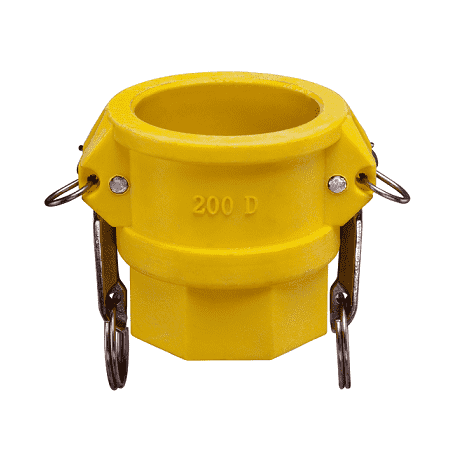

GRD100 by Kuriyama | Quick-Acting Coupling | Part D | 1" Female Coupler x 1" Female NPT | Nylon

GRD100 by Kuriyama | Quick-Acting Coupling | Part D | 1" Female Coupler x 1" Female NPT | Nylon

Save $3.11 Save $3.11
$10.89
$10.89 - $10.89
$10.89
$7.78
$7.78 - $7.78
$7.78

Kuriyama Couplings™ - Quick-Acting Couplings - Part D - Female Coupler x Female NPT - Nylon

Specifications for Variant SKU: GRD100 Kuriyama
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 1in Female Cam & Groove, 1in Female NPT
Material(s): Nylon, 304 Stainless Steel
Seal Material(s): EPDM
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes comply with Mil-Spec A-A-59326 for interchangeability.
  • Nylon material is fiberglass reinforced for high tensile strength and durability.
  • Locking feature using safety clips to prevent disconnection during use on all sizes.
  • All 4" size female couplers are supplied with three locking handles to provide added stability.
Materials:
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • EPDM gaskets.
Part Number Size Weight (Lbs.)
GRD100 1" x 1" 0.18 lbs.
GRD150 1-1/2" x 1-1/2" 0.5 lbs.
GRD200 2" x 2" 0.58 lbs.
GRD300 3" x 3" 1.04 lbs.
GRD400 4" x 4" 1.48 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
