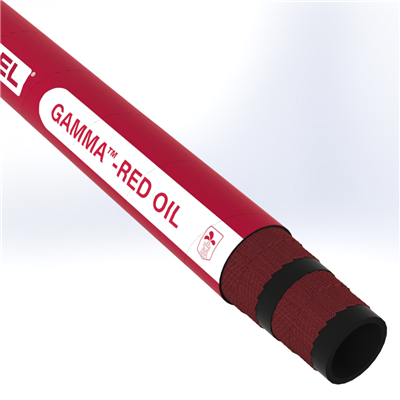

GRO15S1-2.0 by Texcel | GAMMA™-RED OIL Series | Oil Delivery Hose | 2" Hose ID | 100 PSI | Red

$12.21 - $2,034.00

$12.21

$10.85

$10.85 - $1,808.00

$10.85

GAMMA™ by Texcel
RED OIL Series | Oil Delivery Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: GRO15S1-2.0-100 Texcel \| 100 \|
Brand:	GAMMA™
Series:	GAMMA™-RED OIL Series
Hose Color(s):	Red
Internal Diameter:	2in
Outer Diameter:	2.50in
Tubing Construction:	Nitrile
Cover Construction:	Nitrile/EPDM/SBR Blend

Technical Data:
Description:	Lightweight oil discharge hose for use in a variety of applications where an oil-resistant, soft-wall discharge hose is required.	Tube:	Black, fuel and oil-resistant, NBR compound
Cover:	Red, oil, weather and abrasion-resistant EPDM/NR/SBR compound	Reinforcement:	High tensile tire cord plies and static wire
Safety Factor:	3:1	Temperature:	-30°F to +180°F
Safety Note:	Not recommend for use on reels	Branding:	TEXCEL® GAMMA™-RED OIL - OIL DELIVERY HOSE 150 PSI W.P.

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Lbs./ft
GRO15S1-2.0	2"	2-32/64"	150 psi	0.86 lbs
GRO15S1-3.0	3"	2"	150 psi	1.24 lbs
GRO15S1-4.0	4"	4-32/64"	150 psi	1.73 lbs
