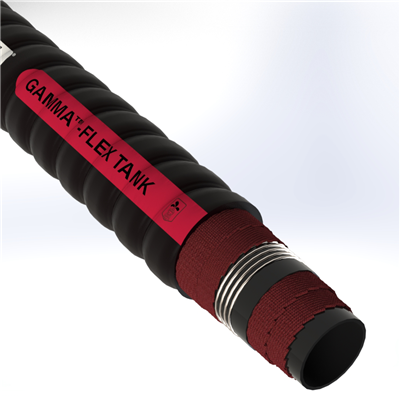

GTA15F1-8.0 by Texcel | GAMMA™-FLEX TANK Series | Corrugated Tank Truck Hose | 8" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black

$72.70 - $6,058.50

$72.70

$64.62

$64.62 - $5,385.33

$64.62

GAMMA™ by Texcel
FLEX TANK Series | Corrugated Tank Truck Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: GTA15F1-8.0-100N Texcel \| 100 \|
Brand:	GAMMA™
Series:	GAMMA™-FLEX TANK Series
Hose Color(s):	Black
Internal Diameter:	8in
Outer Diameter:	8.81in
Tubing Construction:	Nitrile
Cover Construction:	Neoprene

Technical Data:
Description:	A world-class hose for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose. Dramatic flexibility (one-to-one ratio, up to 4" inside diameter) for ease of handling.	Tube:	Black, Nitrile, 55% aromatics (ORS)
Cover:	Black, Neoprene (corrugated)	Reinforcement:	High tensile tire cord plies; dual helix wire
Safety Factor:	4:1	Temperature:	-40°F to +180°F
Branding:	TEXCEL® GAMMA™-FLEX TANK - FLEXIBLE TANK TRUCK HOSE 150 PSI W.P.	Features:	Exceptional flexibility

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./ft
GTA15S1-1.5	1-1/2"	1-63/64"	150 psi	29	1.5"	0.77 lbs
GTA15S1-2.0	2"	2-30/64"	150 psi	29	2"	1.02 lbs
GTA15S1-2.5	2-1/2"	3"	150 psi	29	3.5"	1.31 lbs
GTA15S1-3.0	3"	3-32/64"	150 psi	29	3"	1.60 lbs
GTA15S1-4.0	4"	4-36/64"	150 psi	29	4"	2.55 lbs
GTA15S1-5.0	5"	5-46/64"	150 psi	29	6"	3.86 lbs
GTA15S1-6.0	6"	6-48/64"	150 psi	29	10"	4.17 lbs
GTA15S1-8.0	8"	8-52/64"	150 psi	29	10"	6.02 lbs
