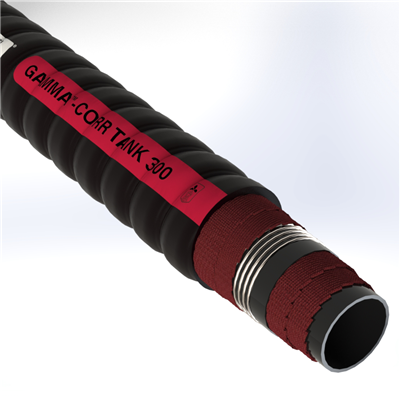

GTA30C1-4.0 by Texcel | GAMMA™-FLEX TANK 300 Series | Heavy-Duty Corrugated Tank Truck Hose | 4" Hose ID | 300 PSI | 29 in/Hg Vacuum Rated | Black

GTA30C1-4.0 by Texcel | GAMMA™-FLEX TANK 300 Series | Heavy-Duty Corrugated Tank Truck Hose | 4" Hose ID | 300 PSI | 29 in/Hg Vacuum Rated | Black

$41.20 - $6,867.00
$41.20
$36.62
$36.62 - $6,104.00
$36.62

GAMMA™ by Texcel
FLEX TANK 300 Series | 300psi Heavy-Duty Corrugated Tank Truck Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GTA30C1-4.0-100N Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-FLEX TANK 300 Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.72in
Tubing Construction: Nitrile
Cover Construction: Neoprene
Technical Data:
Description: Designed for offshore drilling and other demanding applications where a high working pressure is needed and longer lengths with fewer connections are desired. Corrugated cover for greater flexibility. Tube: Black, Nitrile, 55% aromatics (ORS)
Cover: Black, Neoprene (corrugated) Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 *(2" - 6") 3:1 *(8") Temperature: -40°F to +180°F
Branding: TEXCEL® GAMMA™-TANK 300 - HEAVY-DUTY TANK TRUCK HOSE 300 PSI W.P.
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
GTA30C1-2.0 2" 2-32/64" 300 psi 29 4" 1.06 lbs
GTA30S1-3.0 3" 3-39/64" 300 psi 29 7" 1.72 lbs
GTA30S1-4.0 4" 4-46/64" 300 psi 29 10" 2.72 lbs
GTA30C1-6.0 6" 6-60/64" 300 psi 29 20" 5.41 lbs
